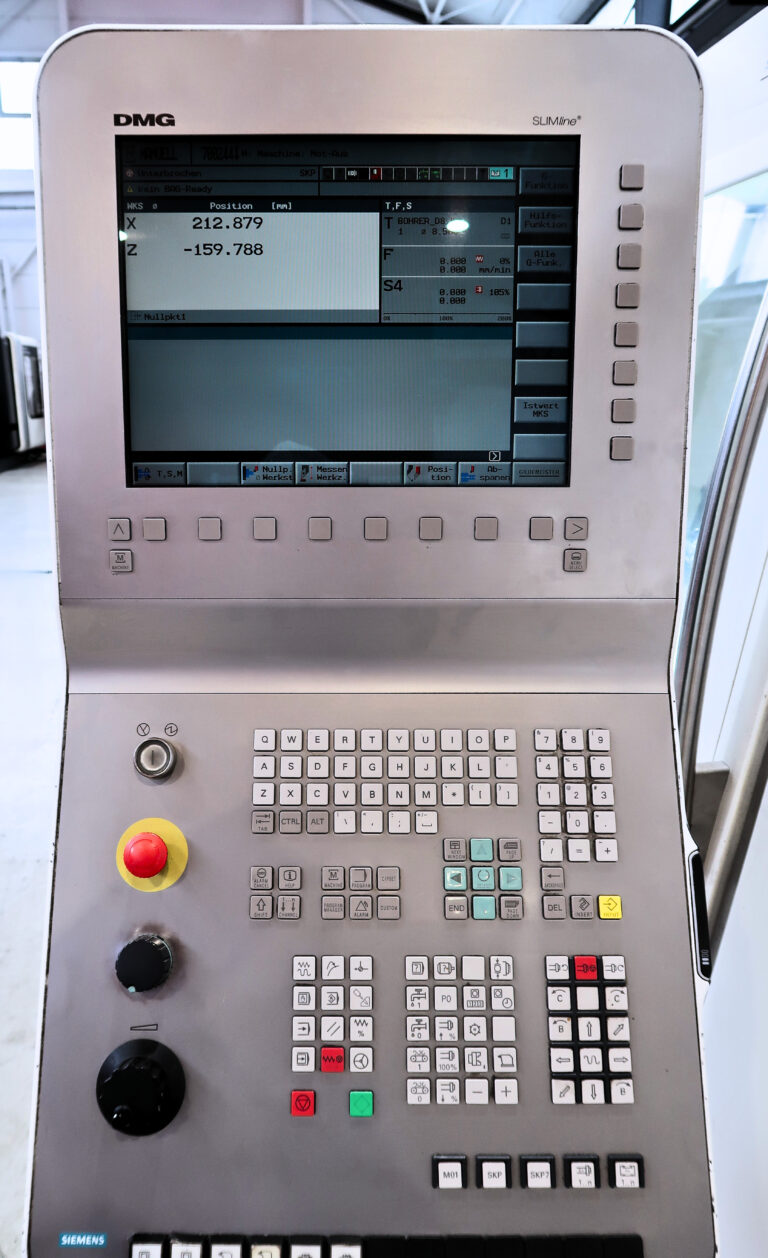

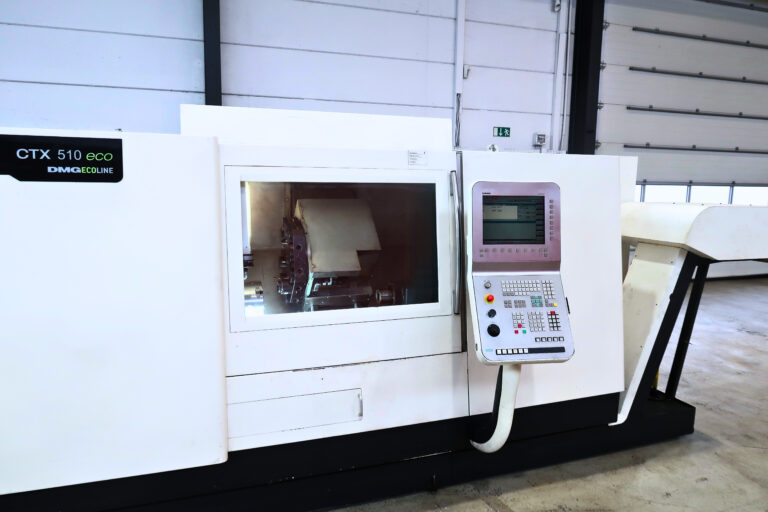

CNC controller: SINUMERIK 810D with ShopTurn
Capacity
X-axis travel mm: 300
Z-axis travel mm: 1.050
Turning length mm: 1.050
Max. turning diameter mm: ø 465
Swing over bed mm: ø 680
Swing over cross-slide mm: 465
Bar work capacity mm: ø90

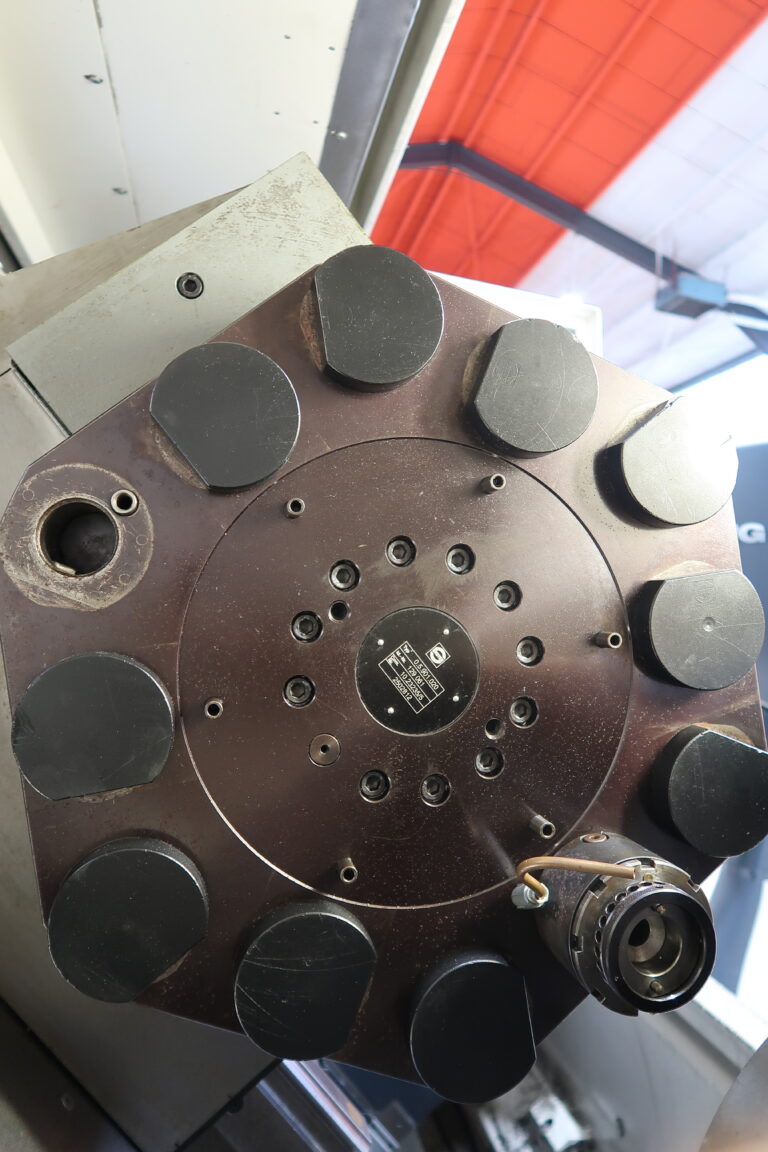

Upper turret
Number of tool slots St .: 12 (6x driven)
Speed driven tools RPM: 4.000

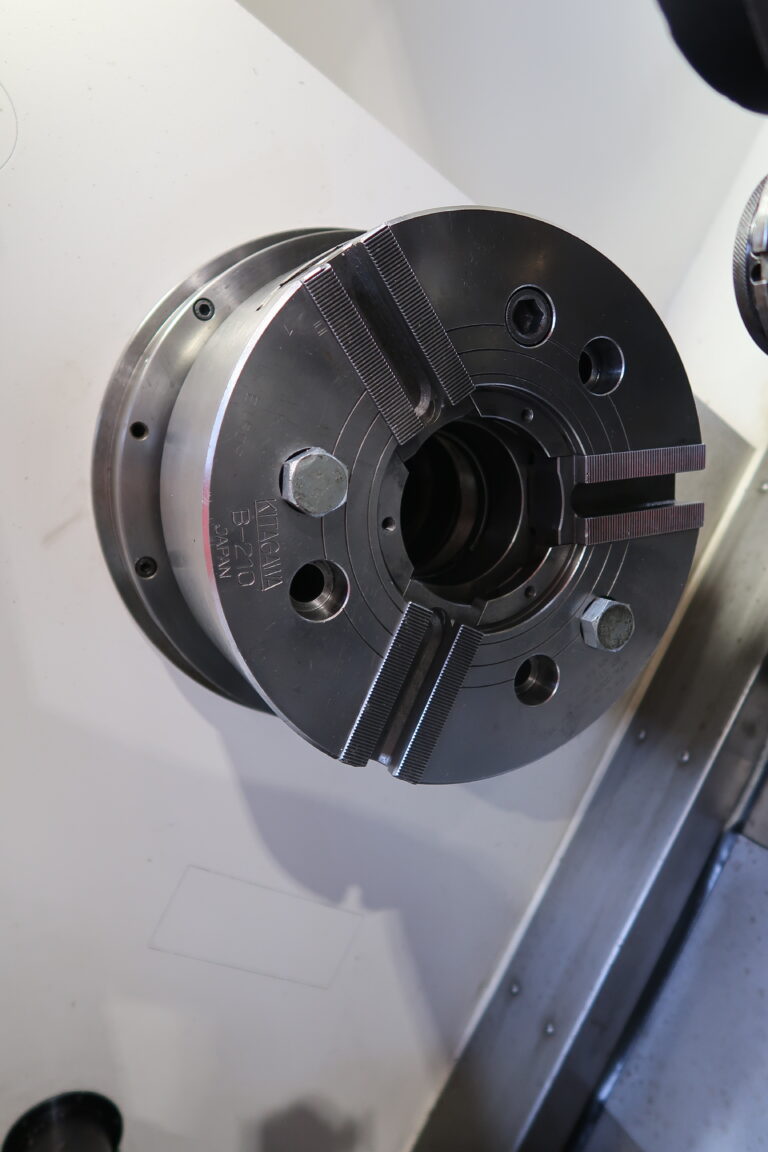

Main spindle
Speed spindle rpm: 3.250
Drive power spindle kW: 33/22 (40%/100% DC)
Spindle bore mm: 102,5
Spindle nose: Flat flange (220h5)
Maximun torque Nm: 420 (100% DC)

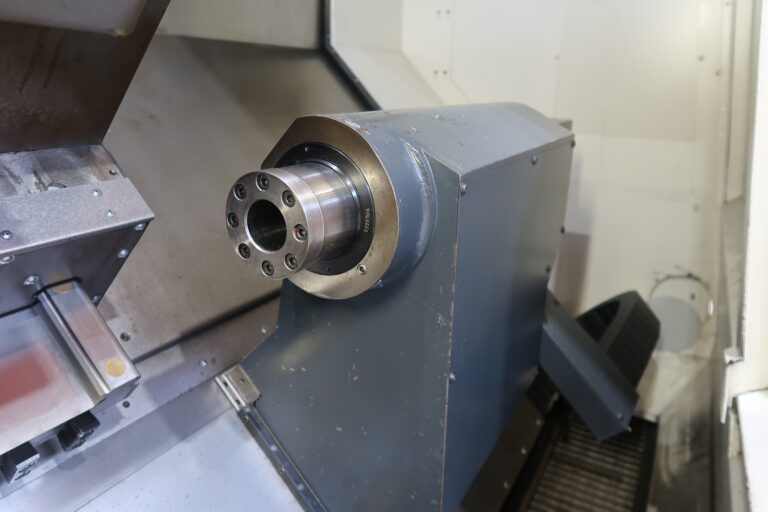

Tailstock
Tailstock travel mm: 850
Holder: MK5
Equipment
part catcher
Workarea light
Foot switch for chuck or collet system

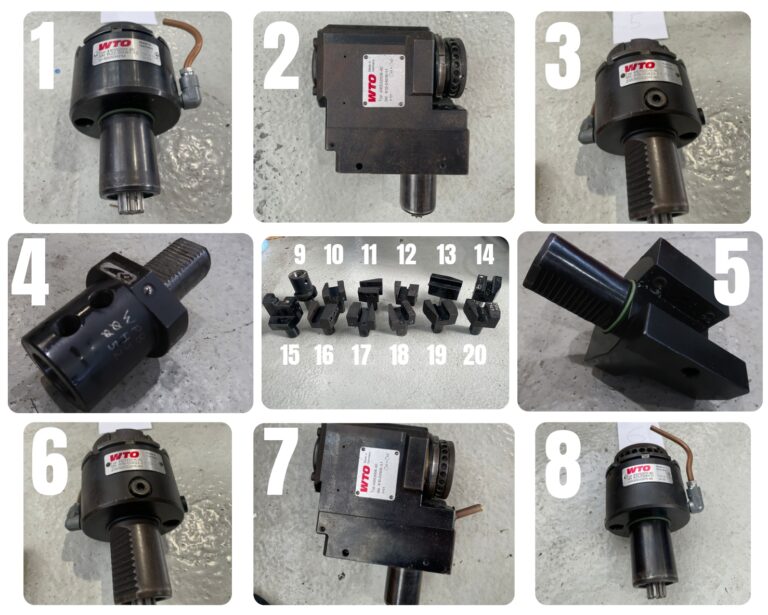

3 radial and 3 axial rotary tools included
12 fixed tools
Working time hours
Spindle 1: 72.059

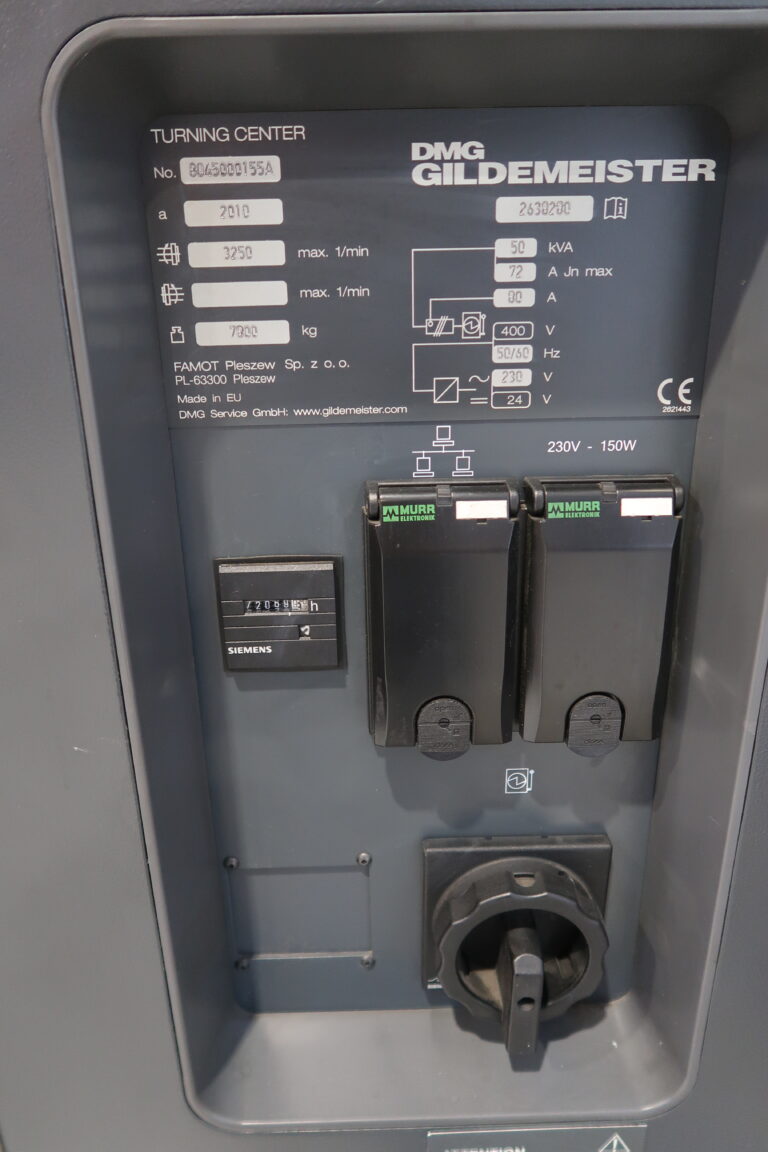

Rated power kVA: 50
Basic machine dimensions / weight
Length mm: 5.300
Width mm: 2.230
Height mm: 2.010
Weight kg: 8.100
董雁冰
CEO
Cillian Weber
CEO
DMG Mori
Germany
2010
Request a quote
Sales Department
DMG Mori
Germany
2010
CNC controller: SINUMERIK 810D with ShopTurn
Capacity
X-axis travel mm: 300
Z-axis travel mm: 1.050
Turning length mm: 1.050
Max. turning diameter mm: ø 465
Swing over bed mm: ø 680
Swing over cross-slide mm: 465
Bar work capacity mm: ø90
Upper turret
Number of tool slots St .: 12 (6x driven)
Speed driven tools RPM: 4.000
Main spindle
Speed spindle rpm: 3.250
Drive power spindle kW: 33/22 (40%/100% DC)
Spindle bore mm: 102,5
Spindle nose: Flat flange (220h5)
Maximun torque Nm: 420 (100% DC)
Tailstock
Tailstock travel mm: 850
Holder: MK5
Equipment
part catcher
Workarea light
Foot switch for chuck or collet system
3 radial and 3 axial rotary tools included
12 fixed tools
Working time hours
Spindle 1: 72.059
Rated power kVA: 50
Basic machine dimensions / weight
Length mm: 5.300
Width mm: 2.230
Height mm: 2.010
Weight kg: 8.100
