Technical characteristics

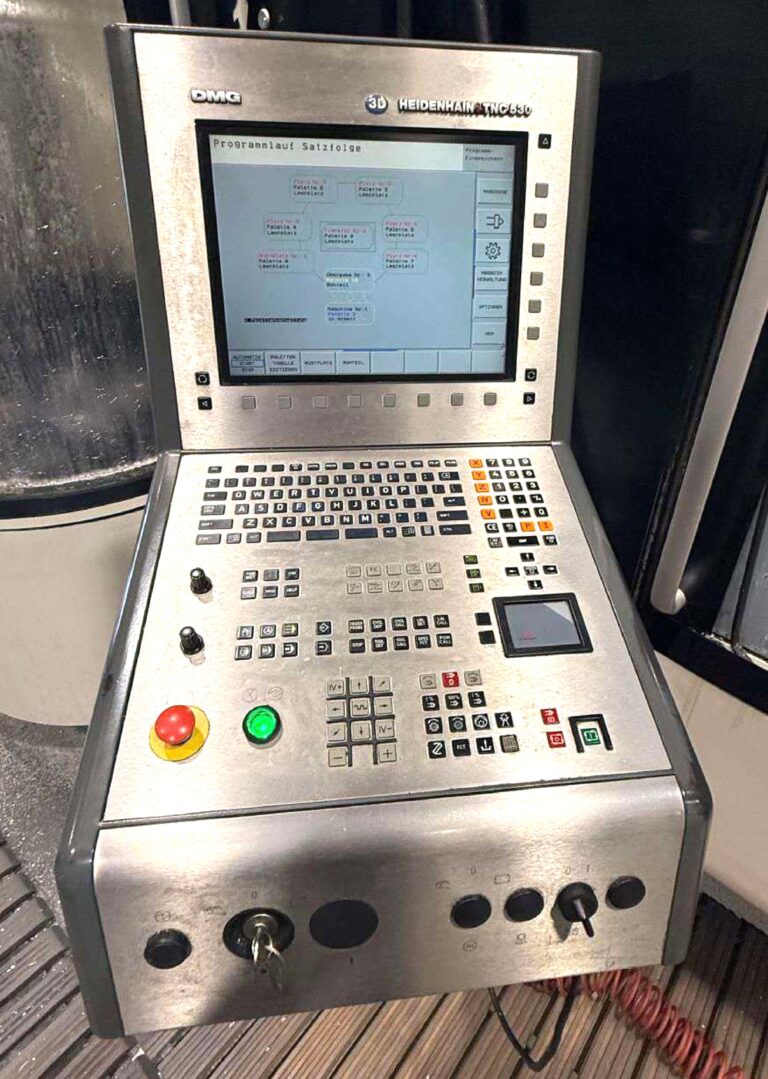

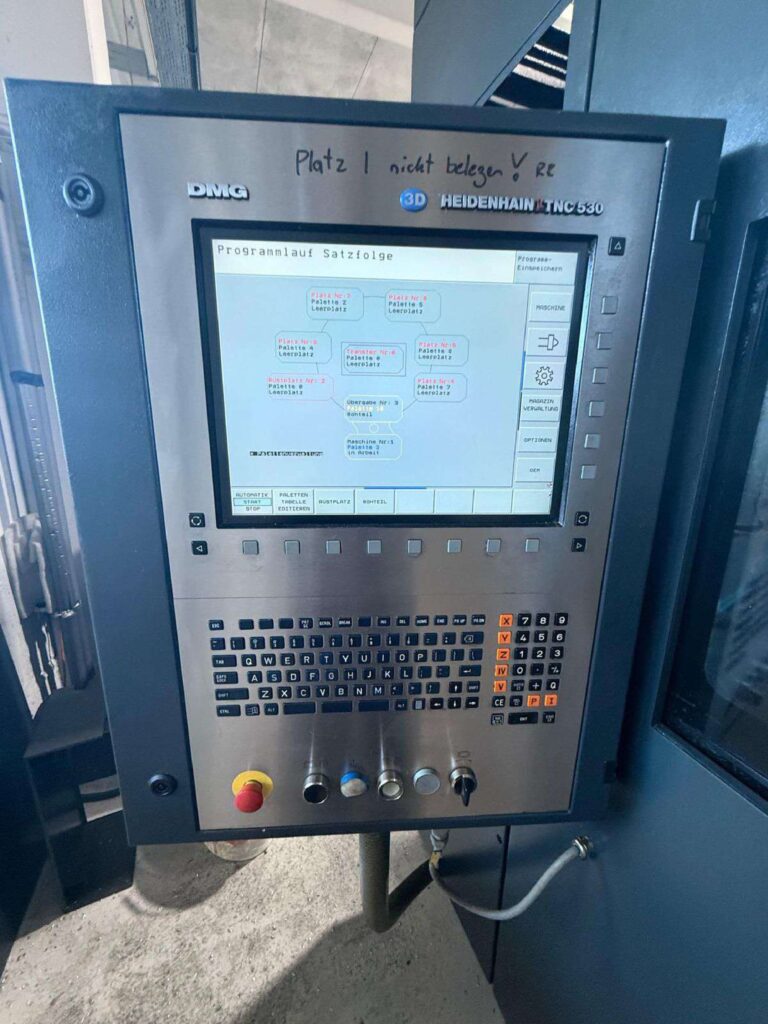

CNC controller: HEIDENHAIN iTNC 530
Axes
X-axis travel mm: 700
Y-axis travel mm: 700
Z-axis travel mm: 700
Distance spindle nose – table surface mm: 100 – 800
Rapid traverse m/min: 60
Acceleration in the axes m/s2: 6 / 6 / 5

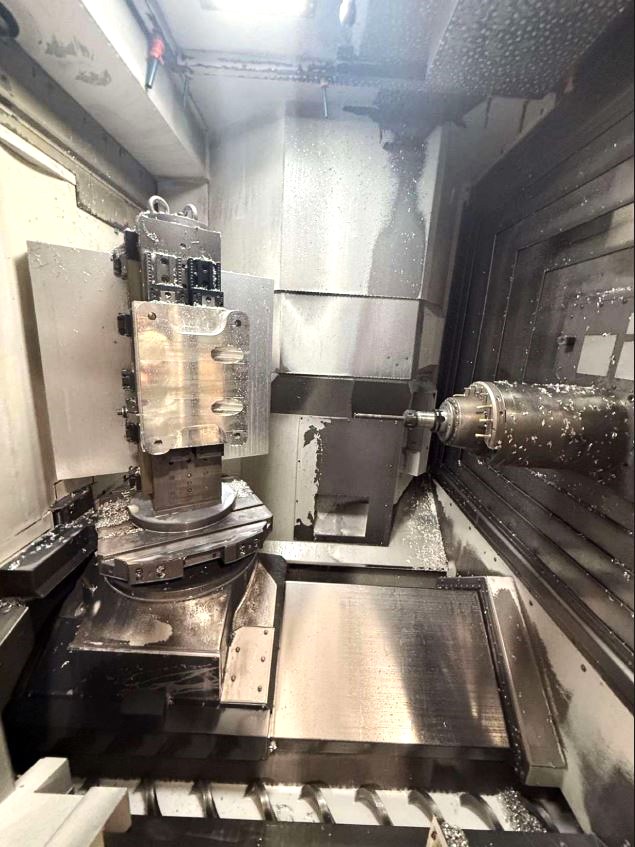

Worktable
Number of pallets: 2 + 5
Table dimensions mm: 500 x 500
Maximum workpiece size (D x H) mm: 800 x 1.000
Max. workpiece weight kg: 600
T-Slot version: DIN 55201-A2
APC time s: 9,5
División estandar Grados: 360º (1º)

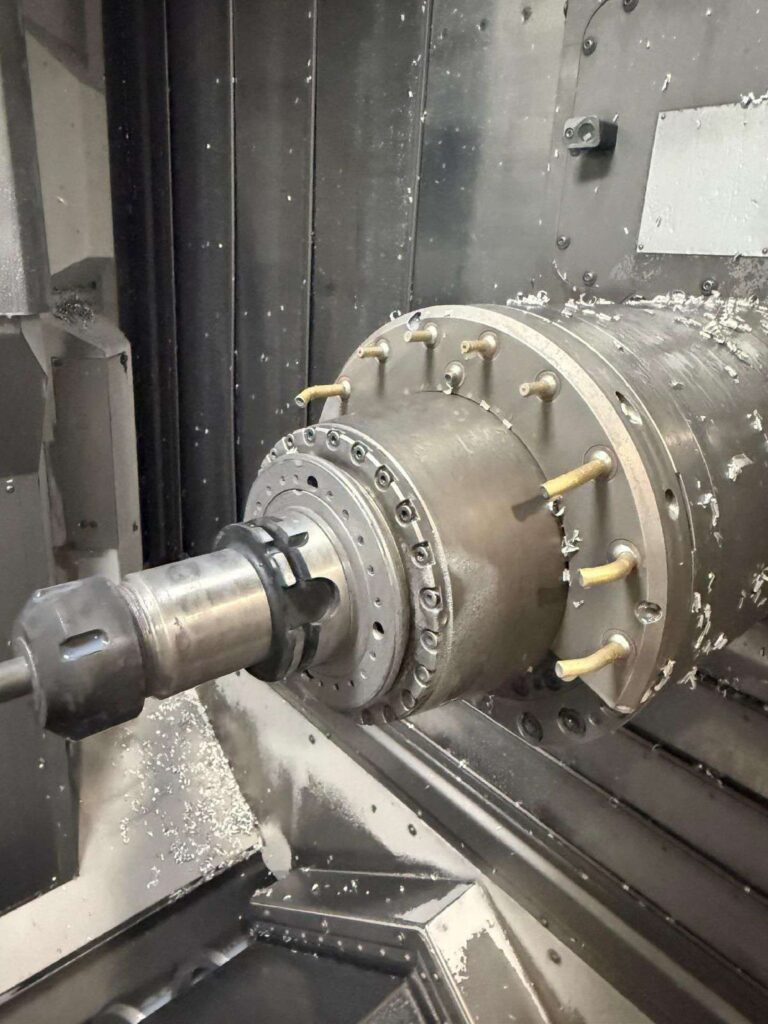

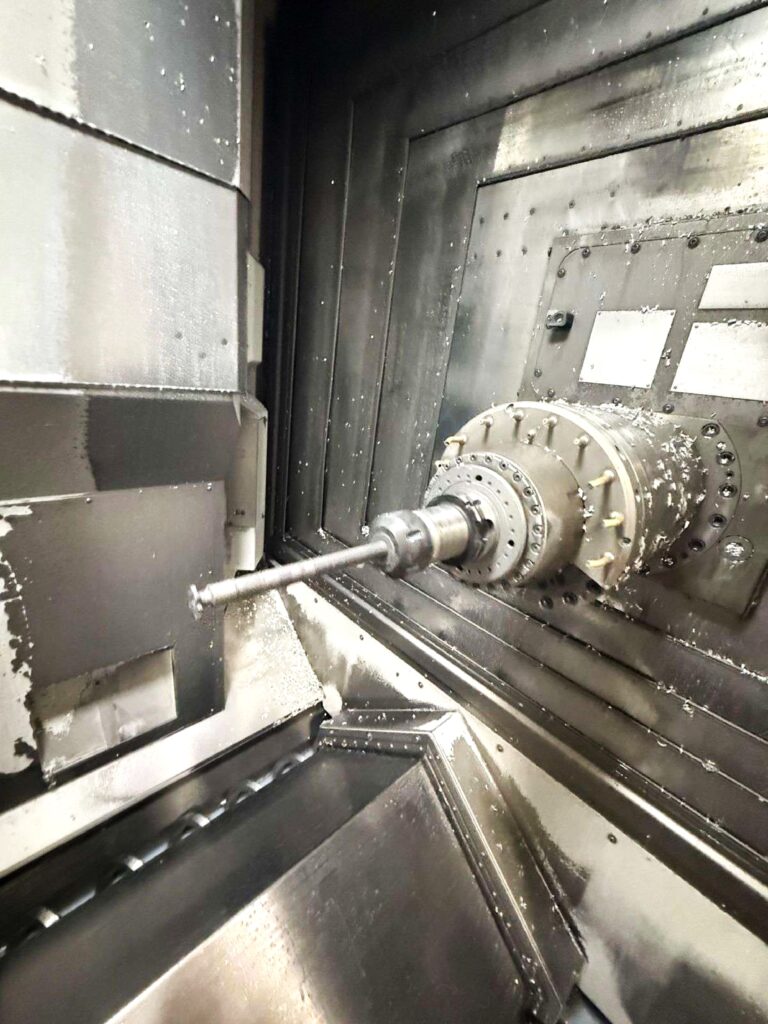

Spindle
Spindle speed rpm: 18.000
Spindle drive power kW: 34 / 28
Spindle torque Nm: 110
Tool system
Tool holder: HSK-A63

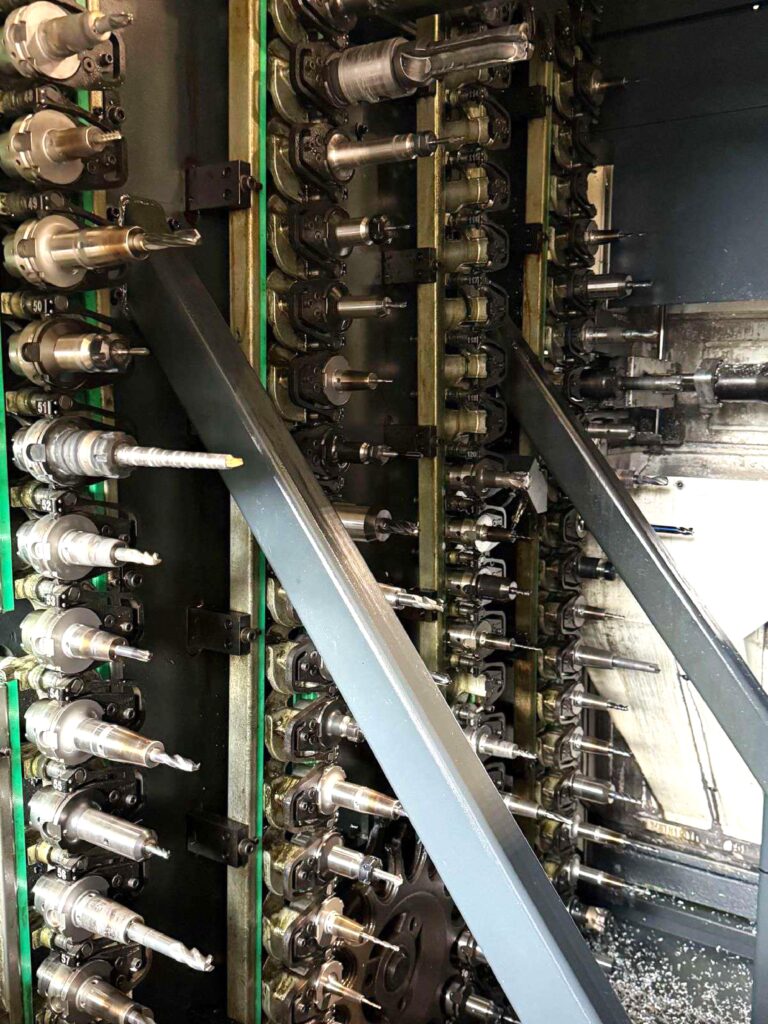

Tool magazine slots: 120
Max. Tool Diameter: 80
Max. Tool Length mm: 550
Max tool weight kg: 12
Chip-to-chip time s: 2,9
Equipment
Electronic Handwheel

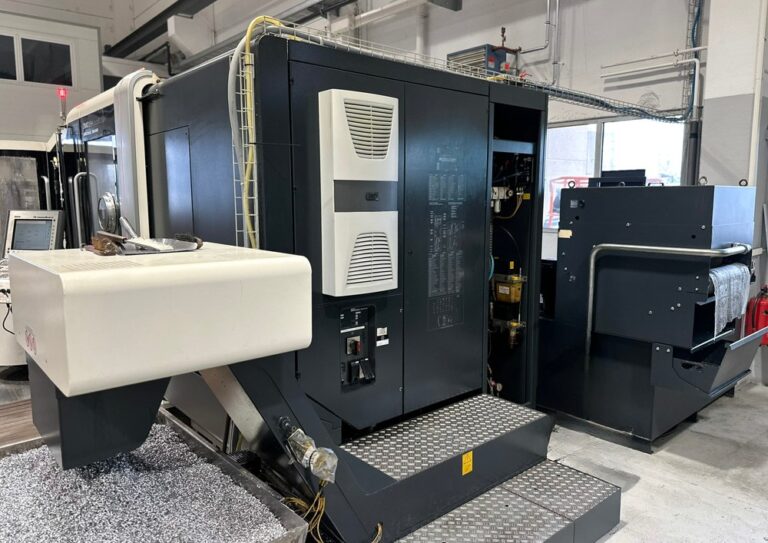

Chip conveyor
Rotating inspection windows
Rinsing gun
Signal lamp
Tool breakage probe
3D quickSET
Workarea light
CE conformity
Cooling device blowing air through spindle center, selectable via M-function
MPC – Machine Protection Control

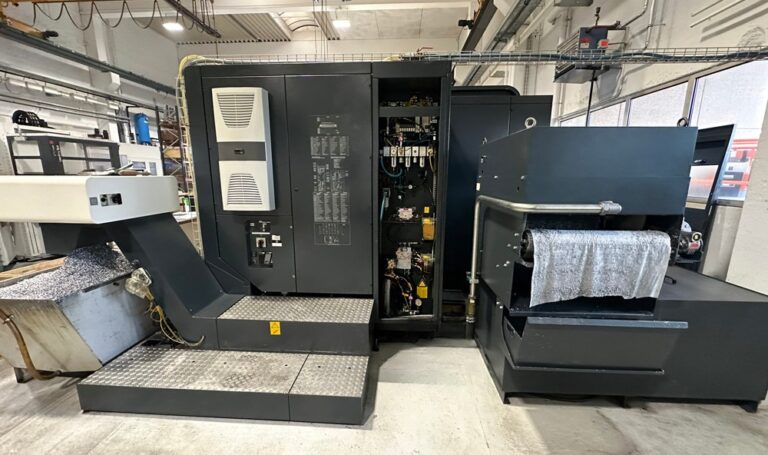

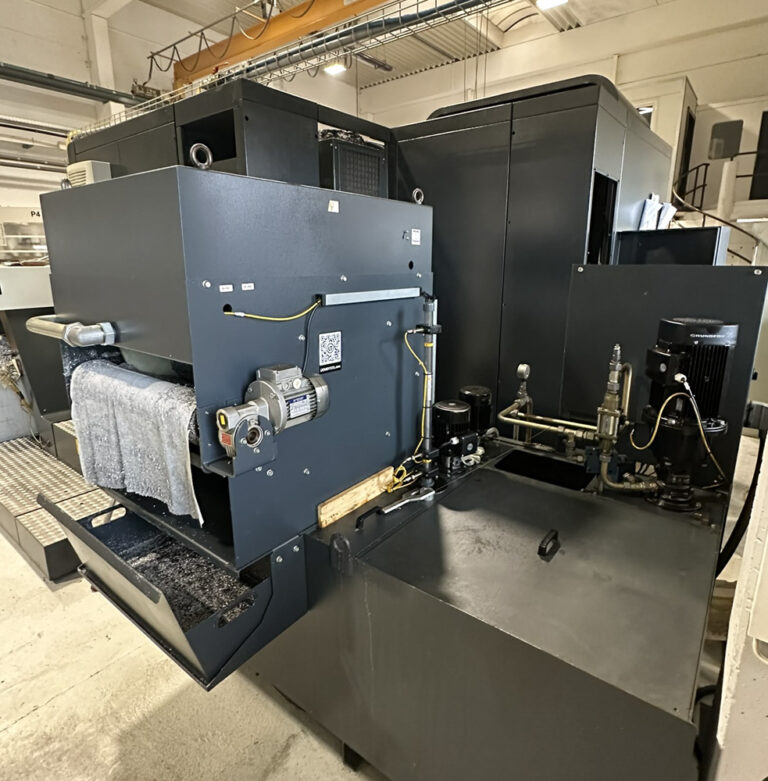

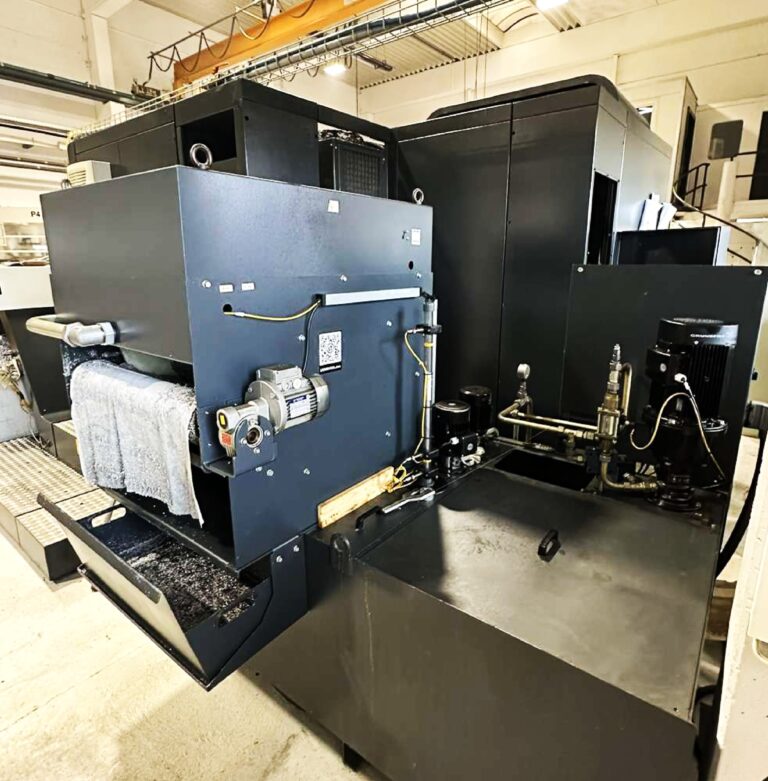

Paper band filter
Infrared Probe Heidenhain TS640
Blum laser tool measurement
Taper clear brushes
Blum laser NT Hybrid

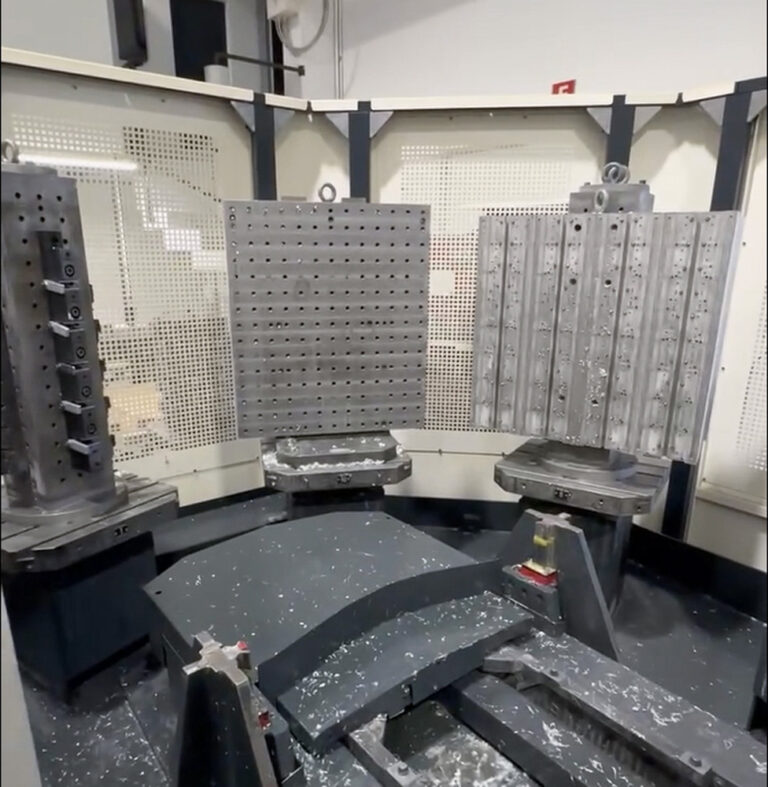

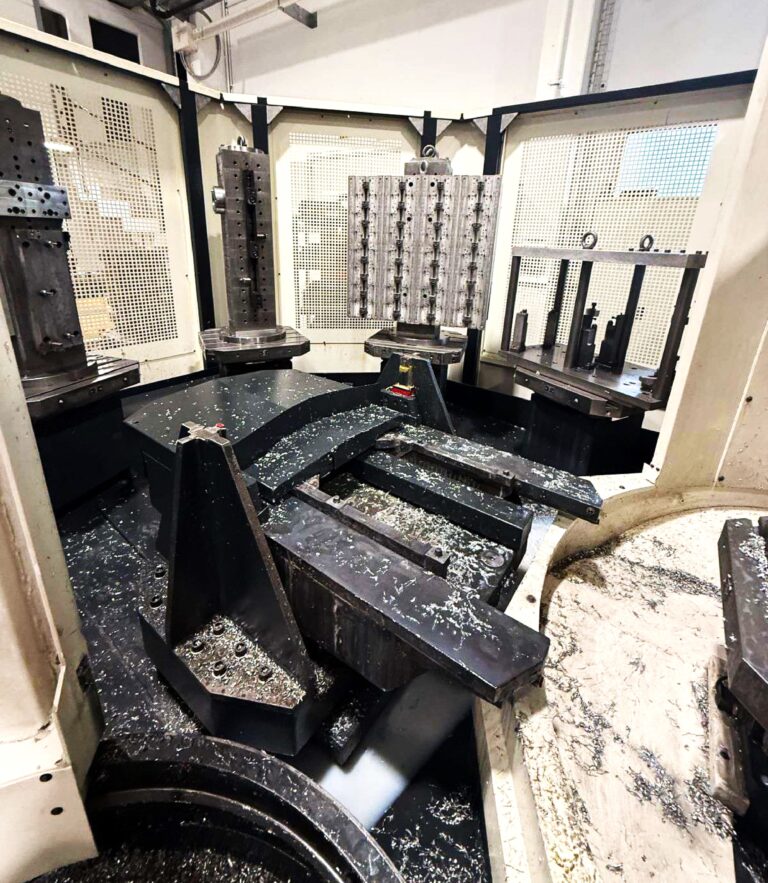

Round pallet Storage (RPS 5)
Measuring probe Heidenhain TS 640
Production package
Internal cooling supply 40 BAR
Cooling
Cooling through the Spindle Center bar: 40 BAR
Tank capacity: 980
High-pressure bar: 40 BAR
Machine running times
Under power: 95.210
Operating Time: 44.971

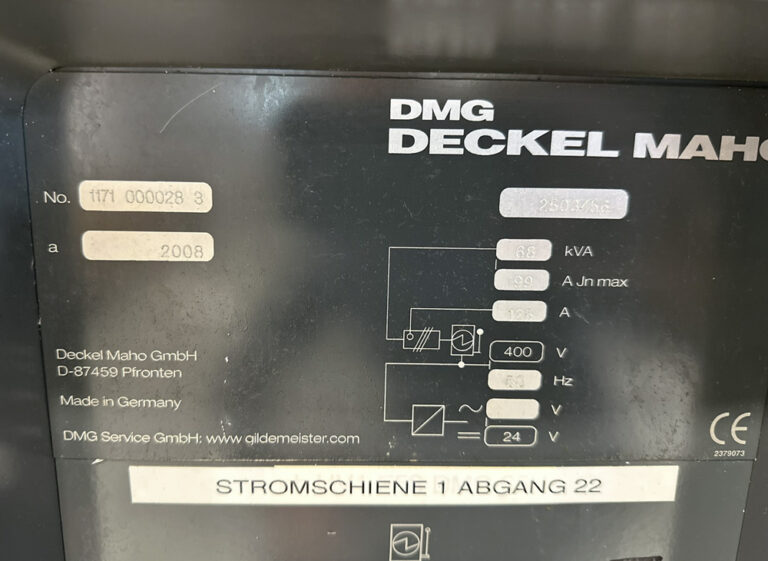

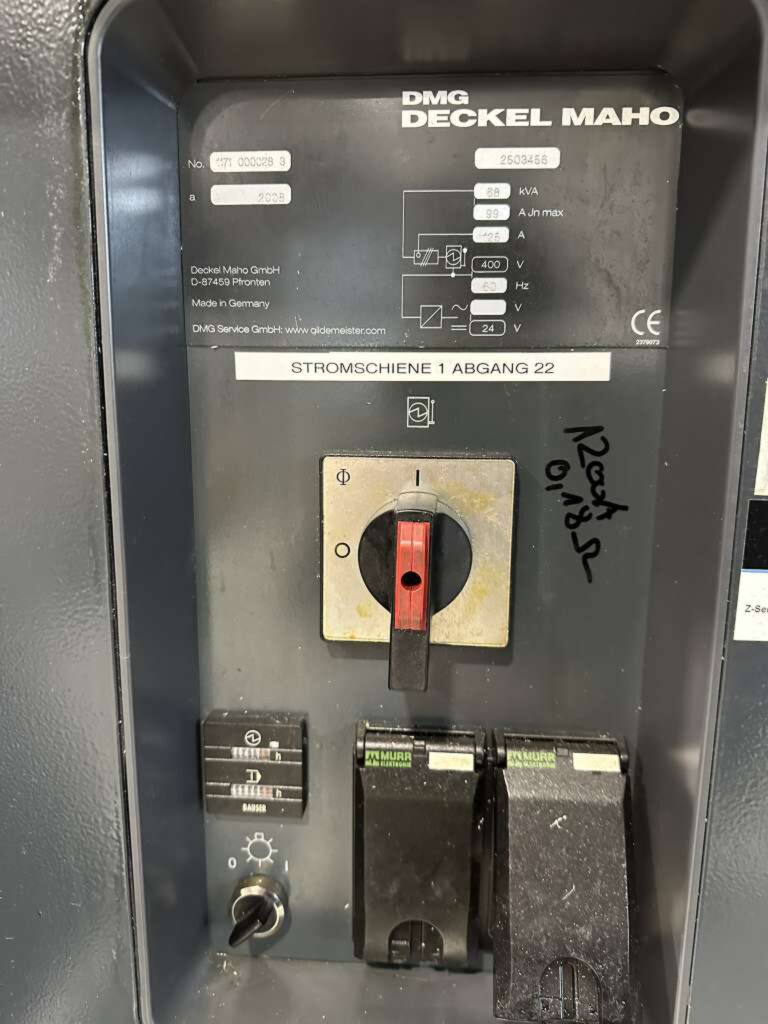

Rated power kVA: 68

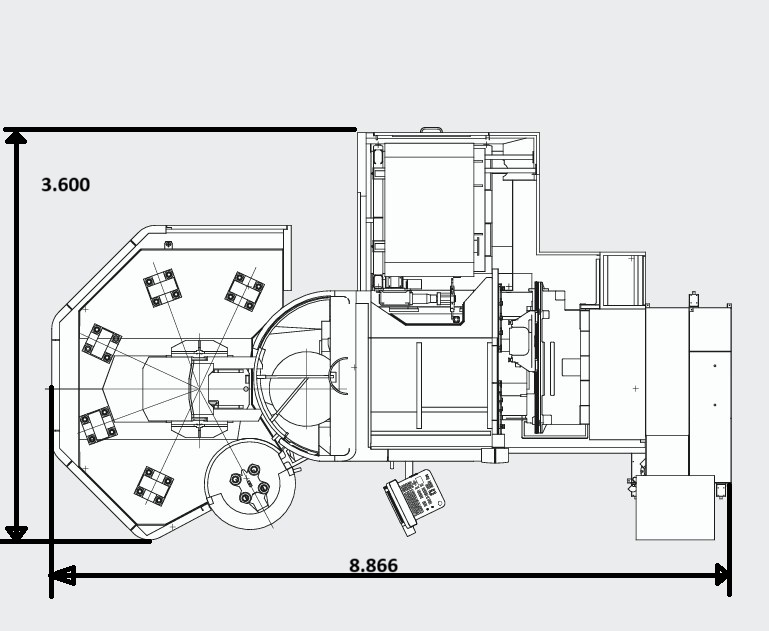

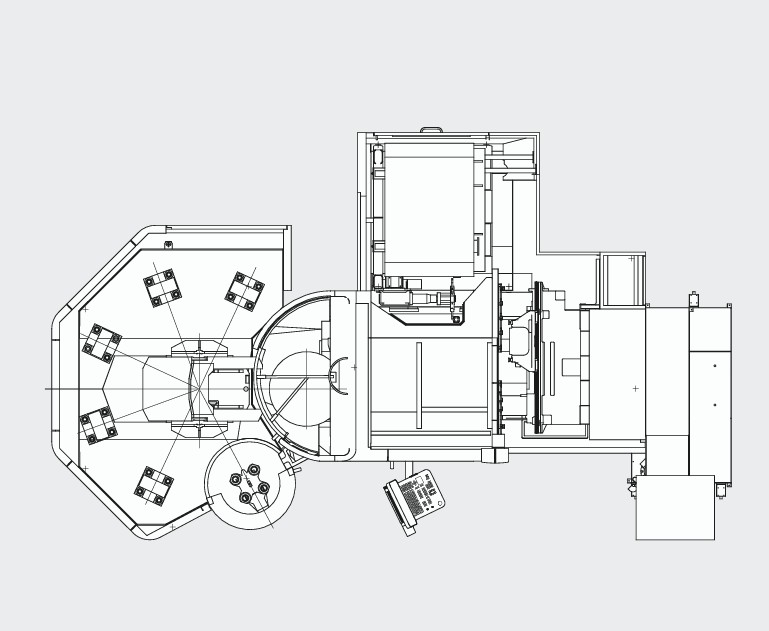

Basic machine dimensions / weight
Length mm: 5.866
Width mm: 4.196
Height mm: 2.547
Weight kg: 12.000

Reviews of who have bought their industrial machine at 3Axis Group

我公司拥有一支专业而称职的团队。我们的团队使DMU 80加工中心的出口过程和CCIC的管理变得简单而令人满意。此外，团队进行了完美的协调，以保证购买过程！毋庸置疑，我们是您最可靠的合作伙伴。

 5/5

The team at 3axisgroup made the process of purchasing the Makino D500 very easy. They took care of everything saving me time and effort.

 5/5

Deckel Maho

DMC 65H duoBLOCK

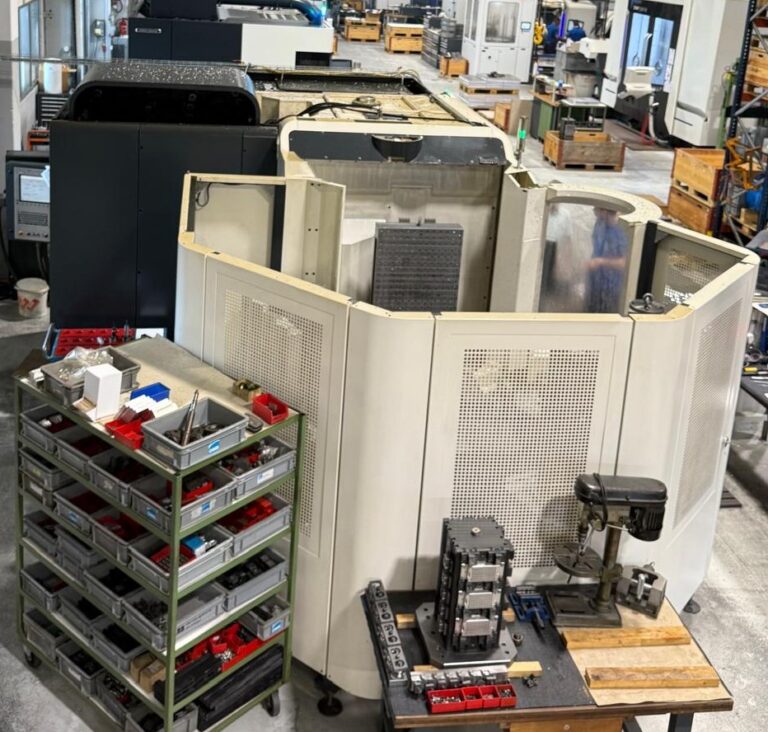

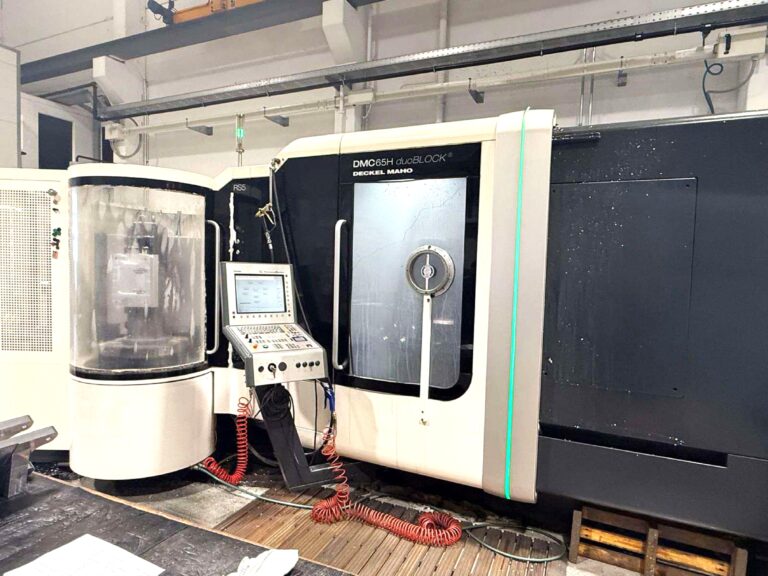

Horizontal machining center – DECKEL MAHO DMC 65H duoBLOCK

Place of location

Germany

Year of manufacture

2008
