Technical characteristics

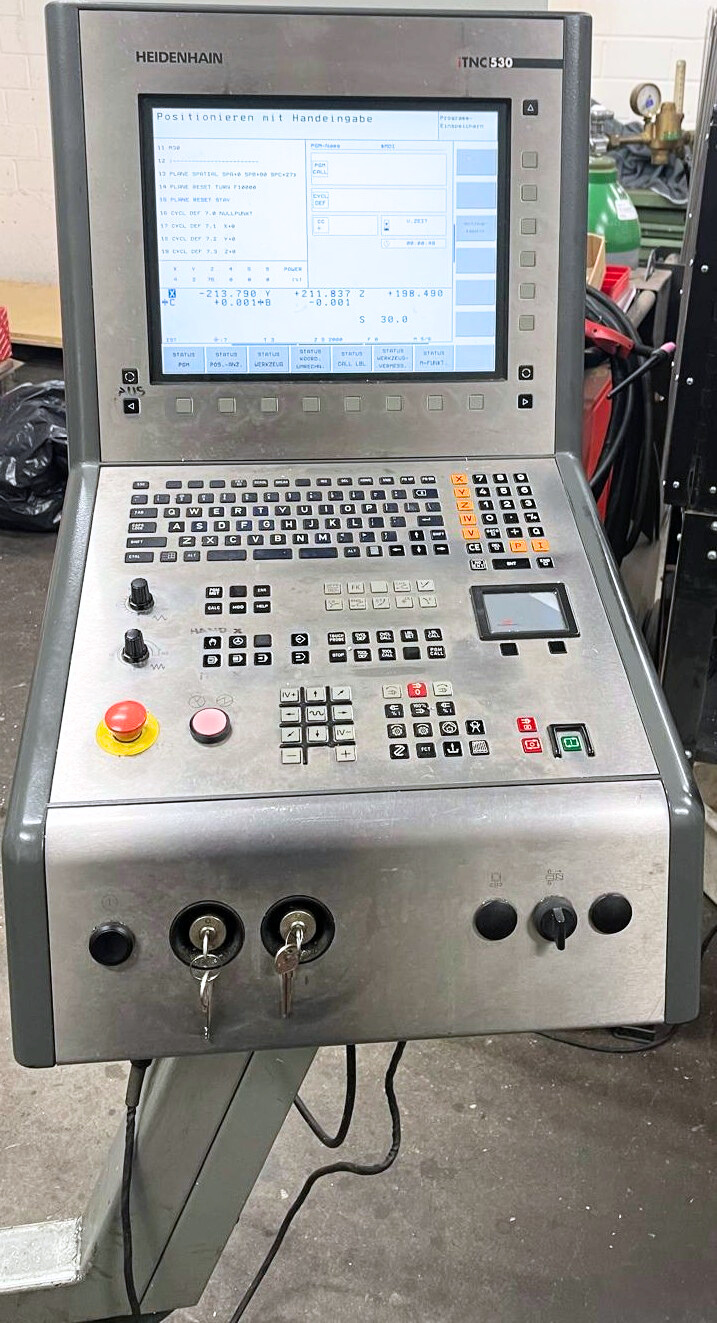

CNC controller: Heidenhain iTNC 530
Axes
X-axis travel mm: 500
Y-axis travel mm: 450
Z-axis travel mm: 400
C-axis degrees: 360º (0,001º) non-simultaneous
B-axis degrees: –5° a +110° (0,001º) non-simultaneous
Rapid traverse m/min: 24
Worktable
Table dimensions mm: 630 x 500
Maximum workpiece size (D x H) mm: 500 x 400
Max. workpiece weight kg: 200
Spindle
Spindle speed rpm: 10.000
Spindle drive power kW: 13 / 9 KW (40 / 100% ED)

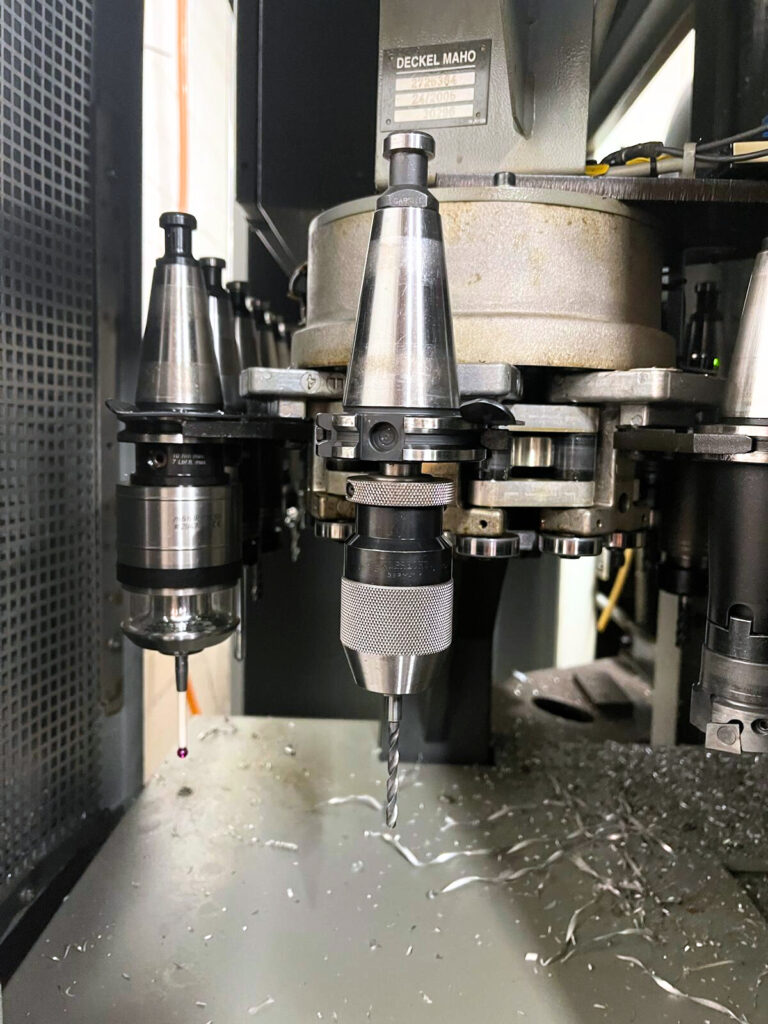

Tool system
Tool holder: SK 40
Tool magazine slots: 30
Max. Tool Length mm: 300
Max tool weight kg: 6
Equipment
Electronic Handwheel
Rinsing gun
Operating mode 4
Blowing air outside the spindle
Measuring probe
Rotating viewing window with laminated glass
Power package

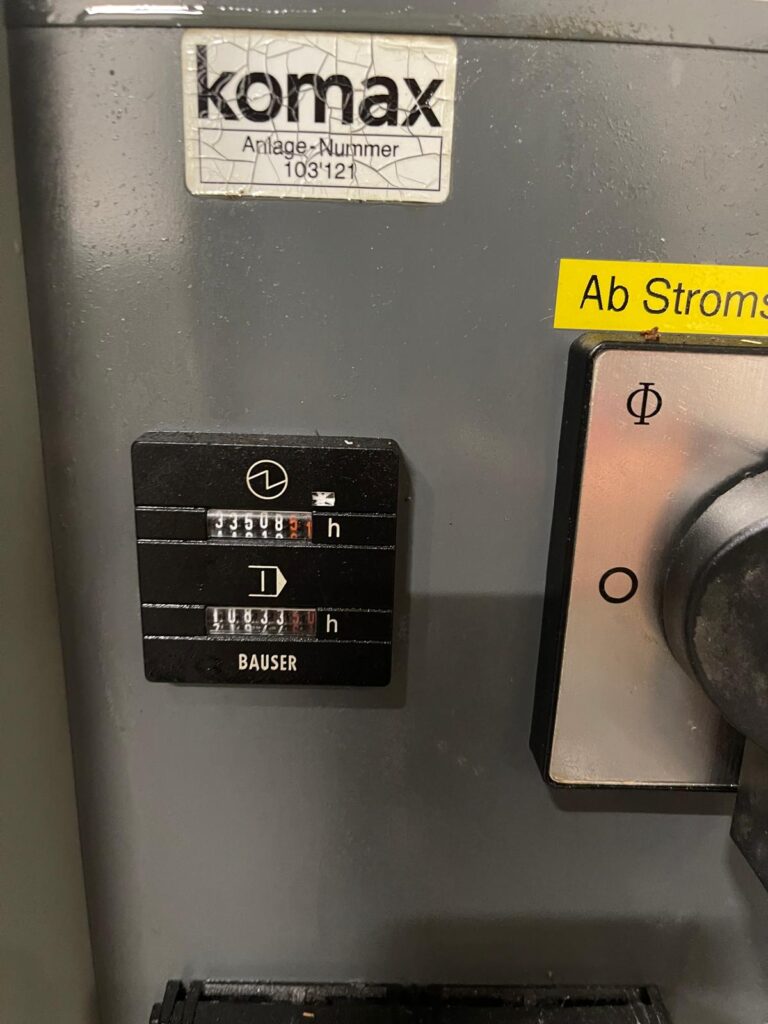

Machine running times
Under power: 33.508
Rated power kVA: 34
Operating Time: 10.833
Basic machine dimensions / weight
Length mm: 2.683
Width mm: 2.210
Height mm: 2.440
Weight kg: 5.020

Reviews of who have bought their industrial machine at 3Axis Group

我公司拥有一支专业而称职的团队。我们的团队使DMU 80加工中心的出口过程和CCIC的管理变得简单而令人满意。此外，团队进行了完美的协调，以保证购买过程！毋庸置疑，我们是您最可靠的合作伙伴。

Rated 5 out of 5

The team at 3axisgroup made the process of purchasing the Makino D500 very easy. They took care of everything saving me time and effort.

Rated 5 out of 5

Deckel Maho

DMU 50

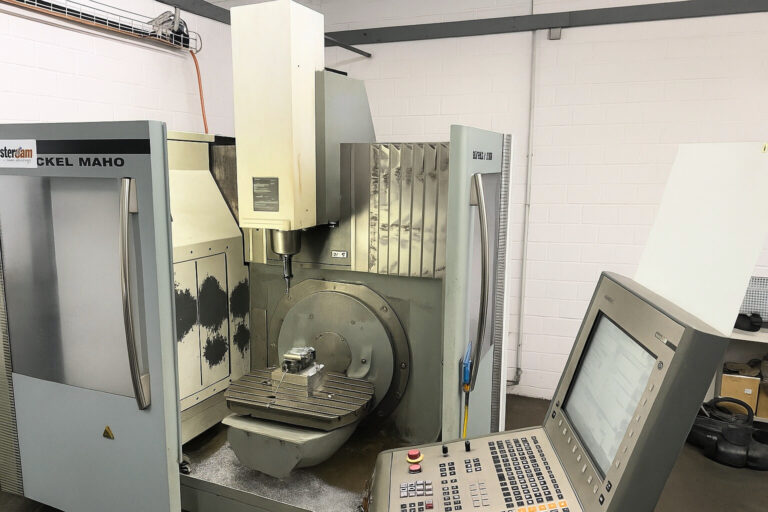

3+2 axis vertical machining center – Deckel Maho DMU 50
