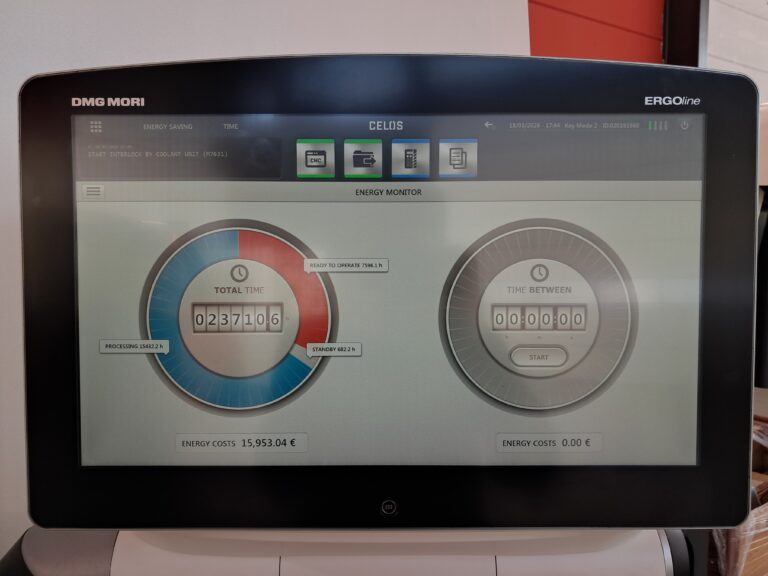

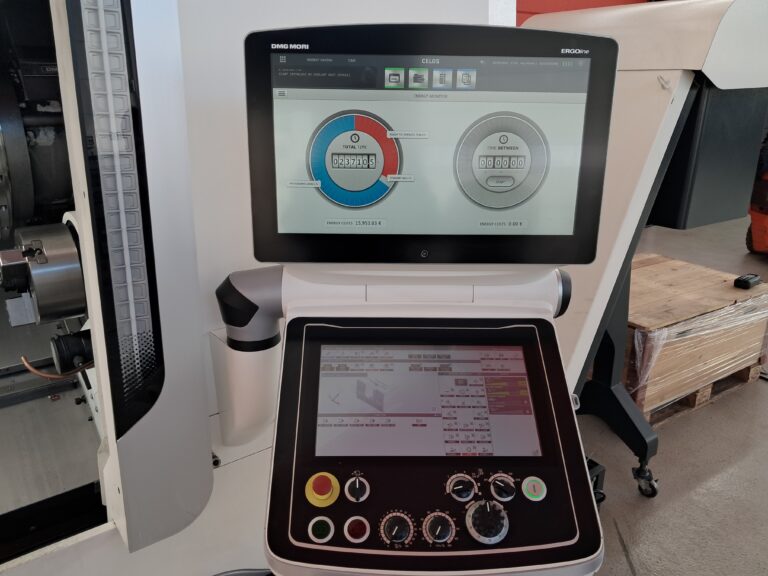

CNC controller: Mitsubishi M730UM (CELOS – ERGOline Touch)
Capacity
X-axis travel mm: 260
Y-axis travel mm: ±50
Z-axis travel mm: 795
Turning length mm: 705
Max. turning diameter mm: ø: 366
Swing over bed mm: ø: 920
Swing over cross-slide mm: 740
Bar work capacity mm: 80

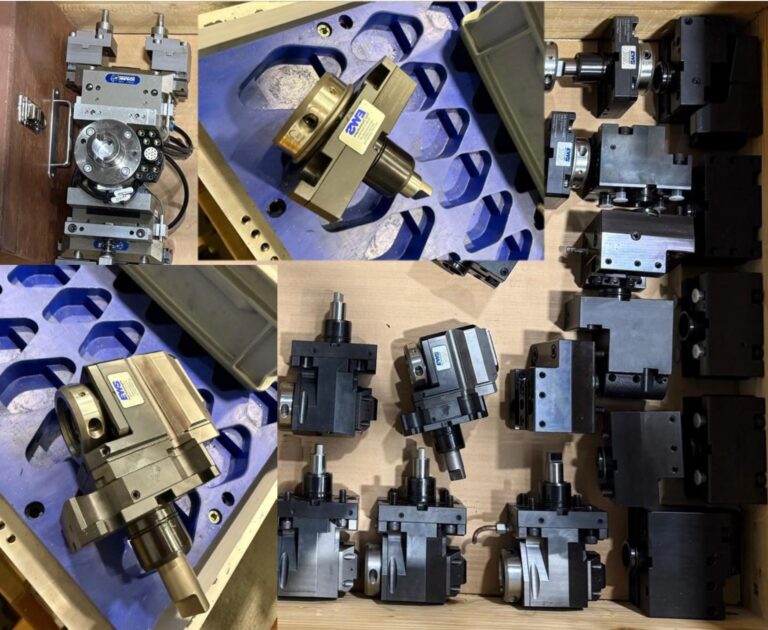

Tool magazine
Magazine places: 20
Tool holder: BMT40

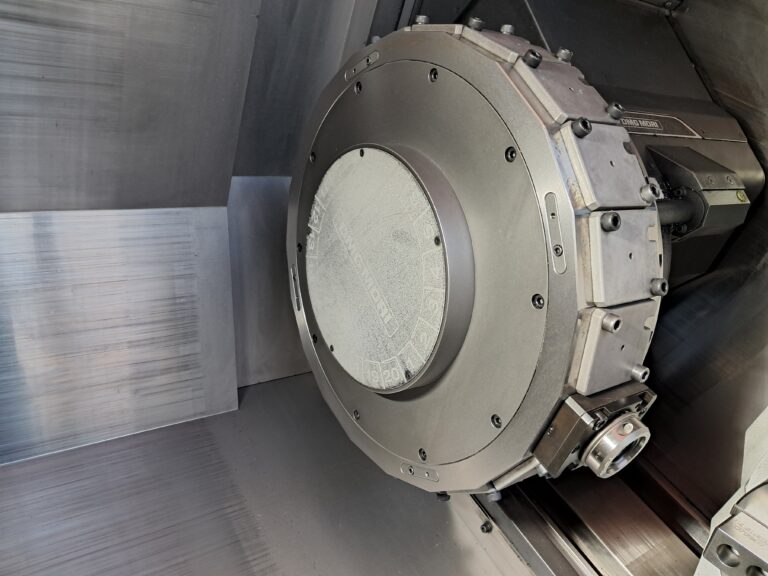

Upper turret
Number of tool slots St .: 20

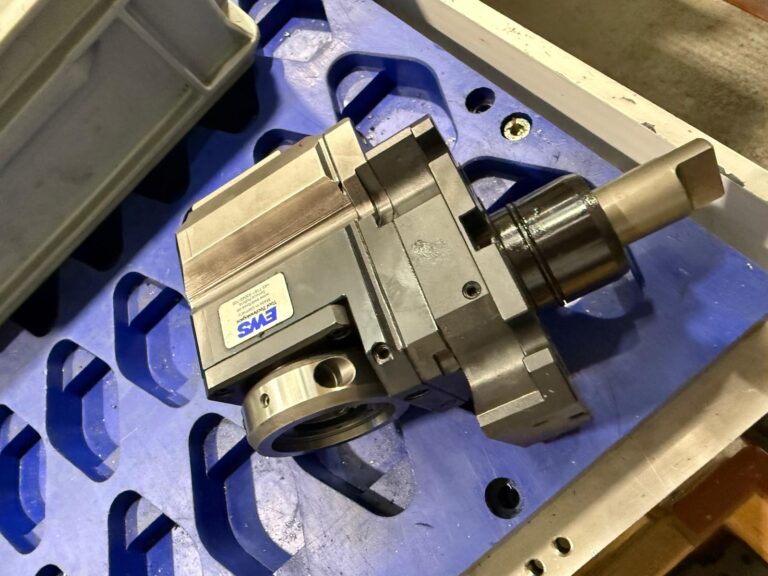

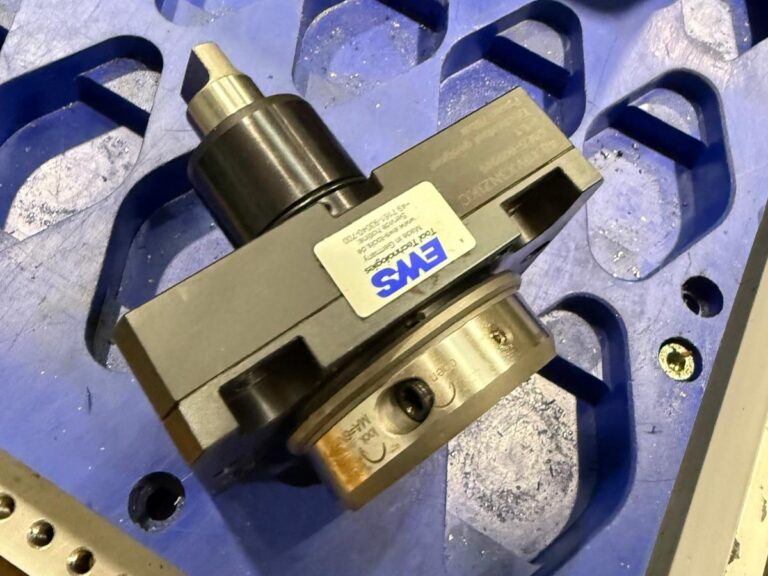

Speed driven tools RPM: 10.000
Drive power driven tools kW: 5.5/4.9/4.2 (3 min/5 min/cont)
Rapid Feed Rate: 30

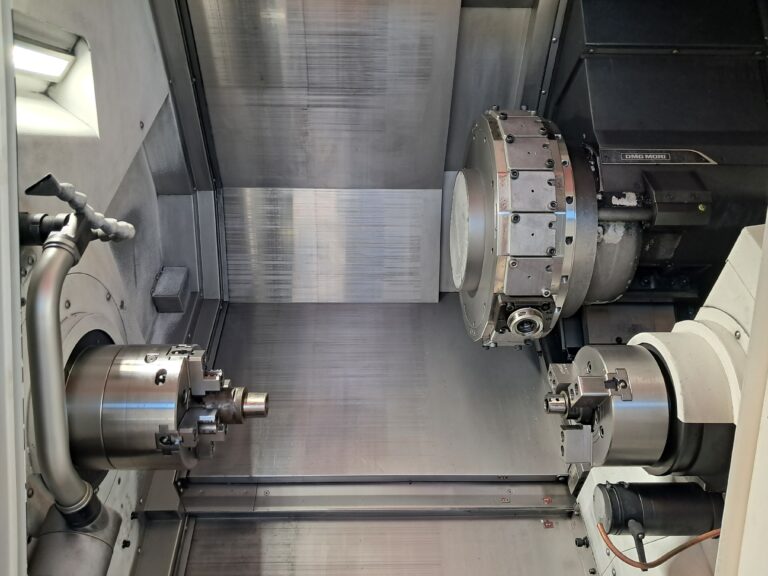

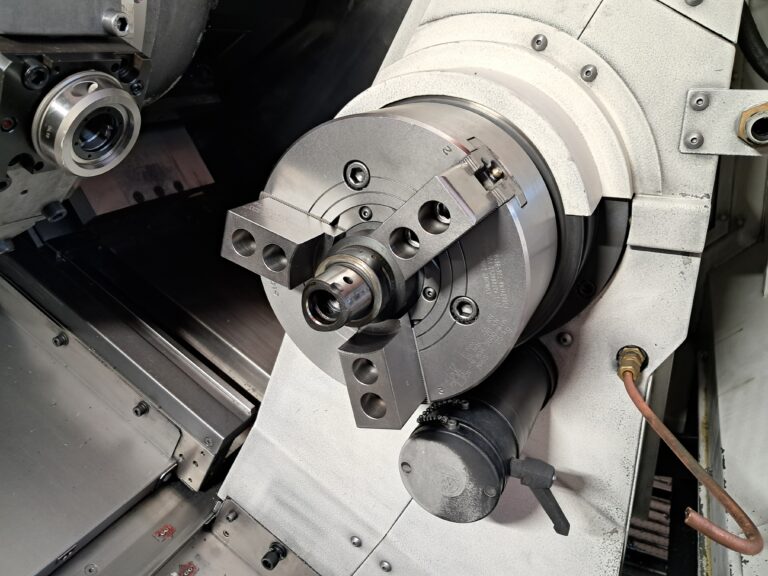

Main spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 18.5/18.5/15 (25%ED/50%ED/cont)
Maximun torque Nm: 49

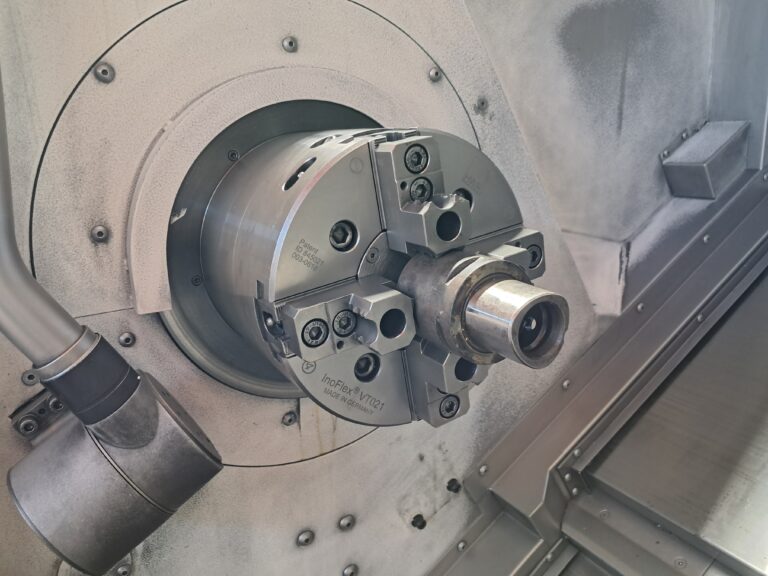

Counter spindle
Speed spindle rpm: 5.000
Drive power spindle kW: 11/7.5 (25%ED/cont)
Maximun torque Nm: 22
Counter spindle travel mm: 734
Coolant system
Tank capacity liter: 366
Equipment
Electronic Handwheel Chip conveyor Signal lamp
High pressure pump
Measuring probe
Paper band filter
Working time hours
Under power: 23.501
Cutting Time: 7.494
Potencial nominal kVA: 48
Basic machine dimensions / weight
Length mm: 5.330
Width mm: 4.100
Height mm: 2.395
Weight kg: 8.360
董雁冰
CEO
Cillian Weber
CEO
DMG Mori
Germany
2018
