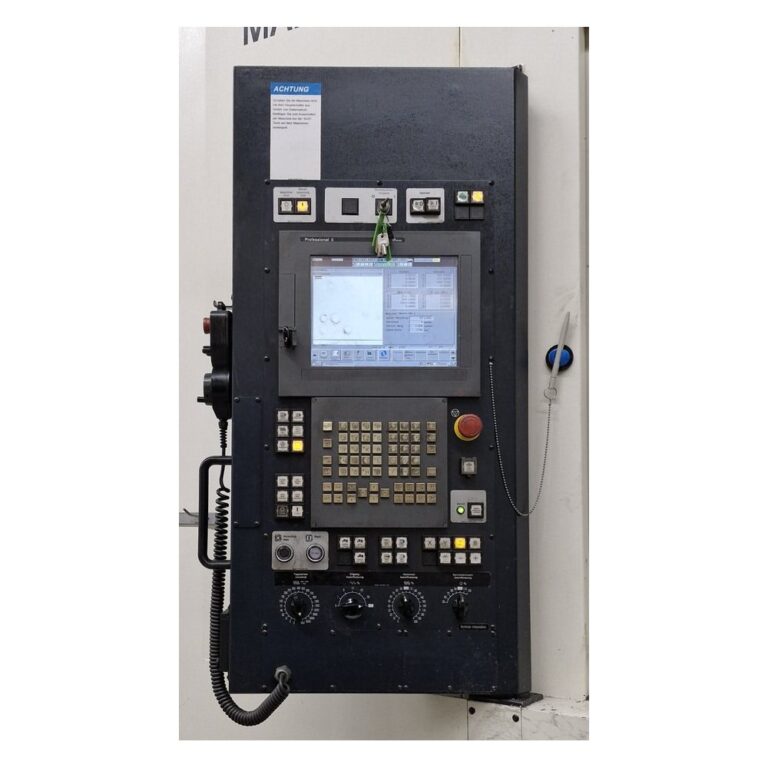

CNC controller: FANUC FS31iA5
Axes
X-axis travel mm: 900
Y-axis travel mm: 800
Z-axis travel mm: 1.020
Rapid traverse m/min: 50
B-axis degrees: 360° (0.001°)

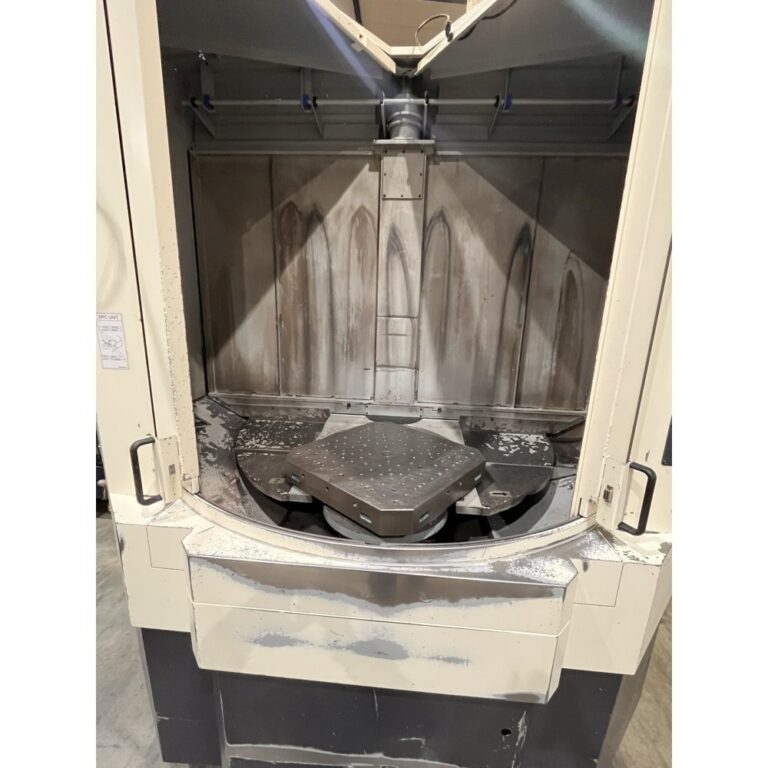

Worktable
Number of pallets: 2
Table dimensions mm: 630 x 630
Max. workpiece weight kg: 1.200
Spindle
Spindle speed rpm: 10.000
Spindle drive power kW: 35/25 kW (15 min/cont.)
Spindle torque Nm: 488

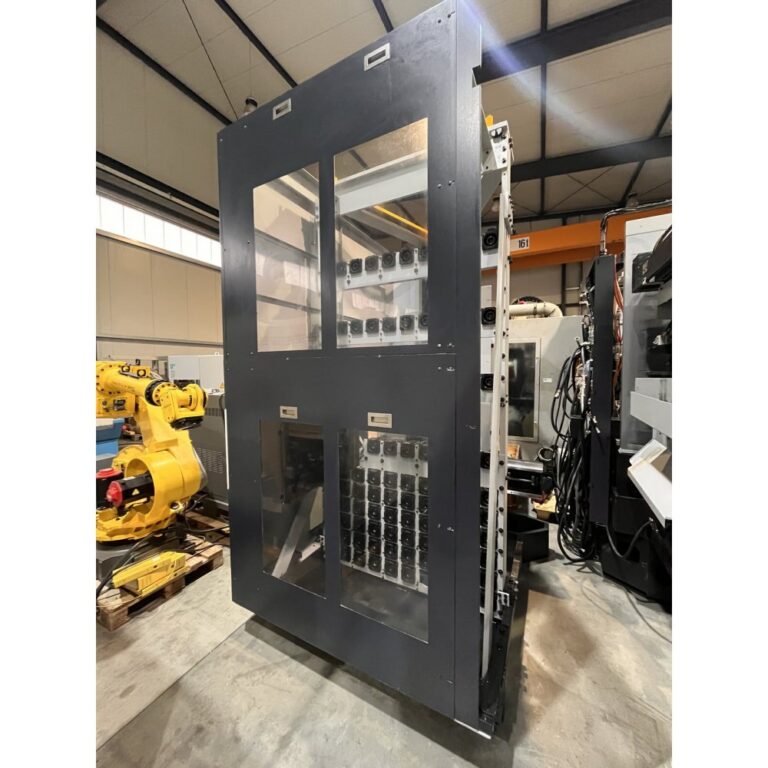

Tool system
Tool holder: HSK – A100
Tool magazine slots: 97
Max. Tool Diameter: 300
With occupied neighboring places mm: 100
Max. Tool Length mm: 690 mm
Max tool weight kg: 30
Cooling
Cooling through the Spindle Center bar: 30
Tank capacity: 955 L
Equipment
Chip conveyor
Signal lamp
Tool breakage probe
Workarea light
Air filter unit, for drying and oil separation of the supplied compressed air
Internal coolant supply

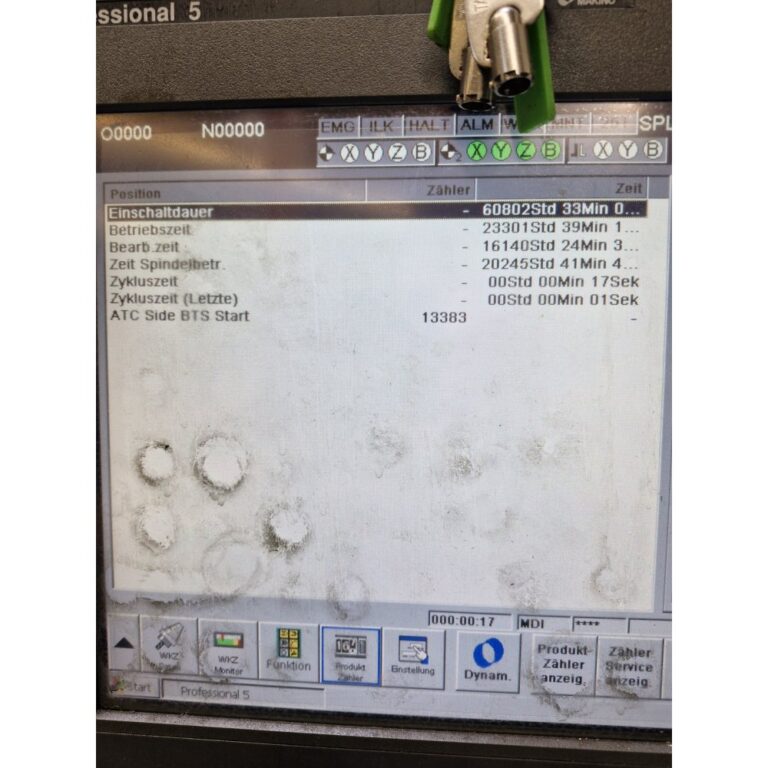

Machine running times
Under power: 60.802
Spindle Working: 16.140
Basic machine dimensions / weight
Length mm: 6.000
Width mm: 4.300
Height mm: 3.300
Weight kg: 20.000
董雁冰
CEO
Cillian Weber
CEO
Makino
Germany
2012
Request a quote
Sales Department
Makino
Germany
2012
CNC controller: FANUC FS31iA5
Axes
X-axis travel mm: 900
Y-axis travel mm: 800
Z-axis travel mm: 1.020
Rapid traverse m/min: 50
B-axis degrees: 360° (0.001°)
Worktable
Number of pallets: 2
Table dimensions mm: 630 x 630
Max. workpiece weight kg: 1.200
Spindle
Spindle speed rpm: 10.000
Spindle drive power kW: 35/25 kW (15 min/cont.)
Spindle torque Nm: 488
Tool system
Tool holder: HSK – A100
Tool magazine slots: 97
Max. Tool Diameter: 300
With occupied neighboring places mm: 100
Max. Tool Length mm: 690 mm
Max tool weight kg: 30
Cooling
Cooling through the Spindle Center bar: 30
Tank capacity: 955 L
Equipment
Chip conveyor
Signal lamp
Tool breakage probe
Workarea light
Air filter unit, for drying and oil separation of the supplied compressed air
Internal coolant supply
Machine running times
Under power: 60.802
Spindle Working: 16.140
Basic machine dimensions / weight
Length mm: 6.000
Width mm: 4.300
Height mm: 3.300
Weight kg: 20.000
