Besides, we not only have the best prices in the market, we also offer you the possibility of financing the purchase to facilitate access to top quality machines at an affordable cost.
It is about important investments and that is why we are clear with a 100% safe machinery purchase and sale process, in order that you have all the necessary information to buy such a product.
To avoid that you have to travel, we take care of the transport and shipment of the purchase to your place of work. We collaborate with companies specialised in this type of orders and we can both, sell at source or turnkey.

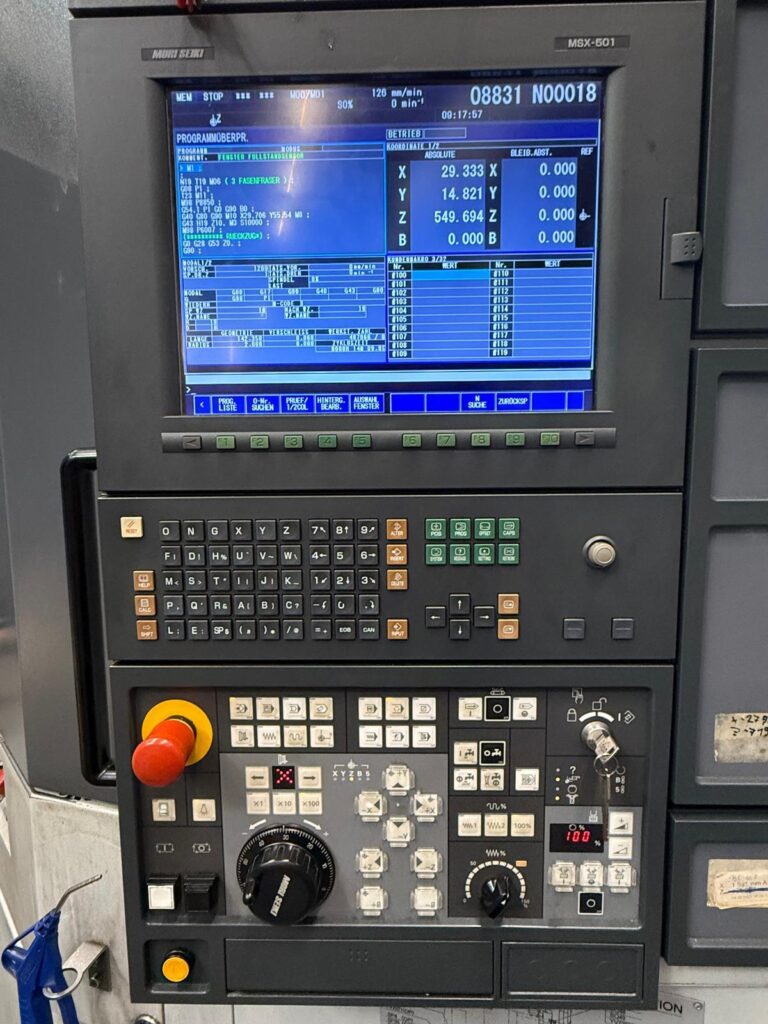

CNC controller: FS-18IMB (MAPPS 2)
Axes
X-axis travel mm: 560
Y-axis travel mm: 560
Z-axis travel mm: 630
Rapid traverse m/min: 50
Rotary Worktable (4th axis): FULL 4TH AXIS ROTARY TABLE

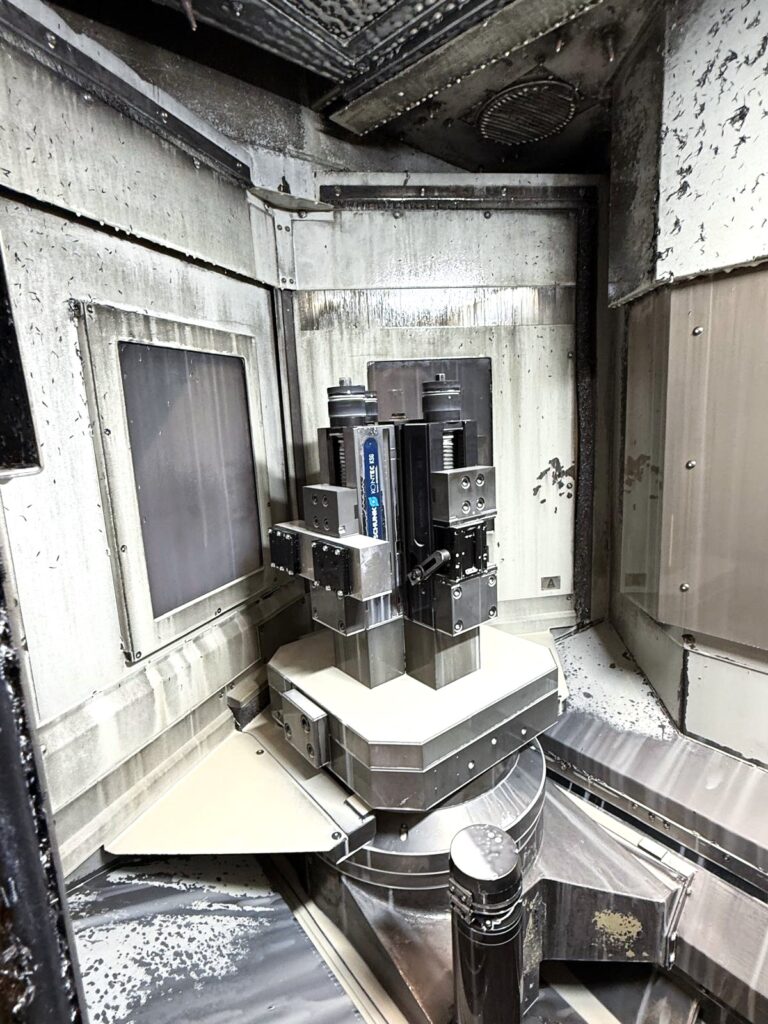

Worktable
Number of pallets: 3
Table dimensions mm: 400

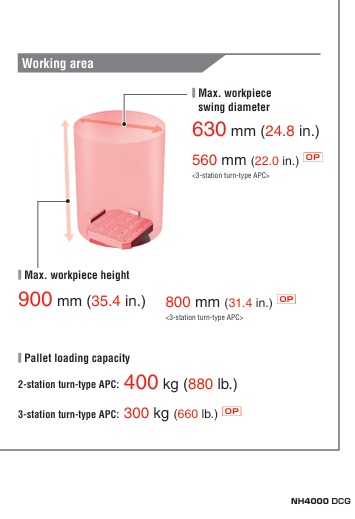

Maximum workpiece size (D x H) mm: 560 x 800
Max. workpiece weight kg: 300
APC time s: 6

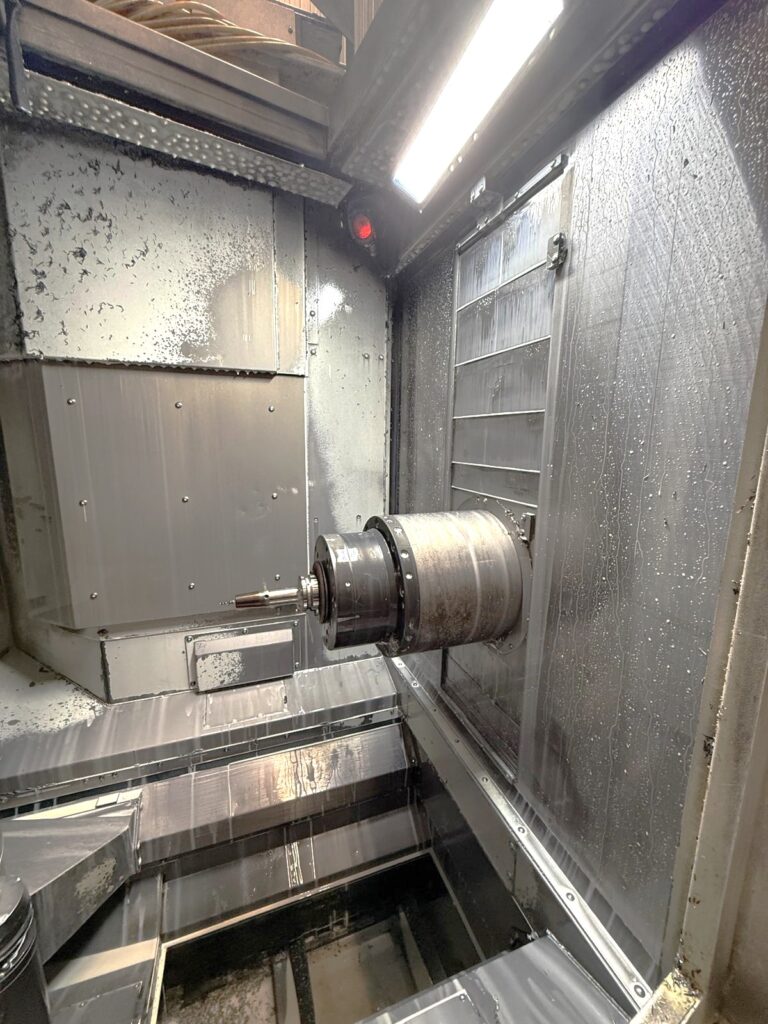

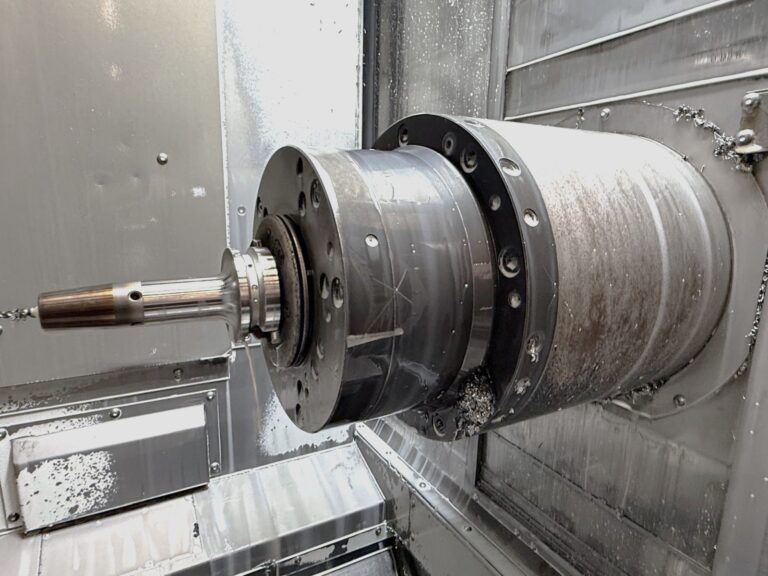

Spindle
Spindle speed rpm: 14.000
Spindle drive power kW: 18.5/11 KW
Spindle torque Nm: 120 Nm (10%ED)
Tool system
Tool holder: BT-40

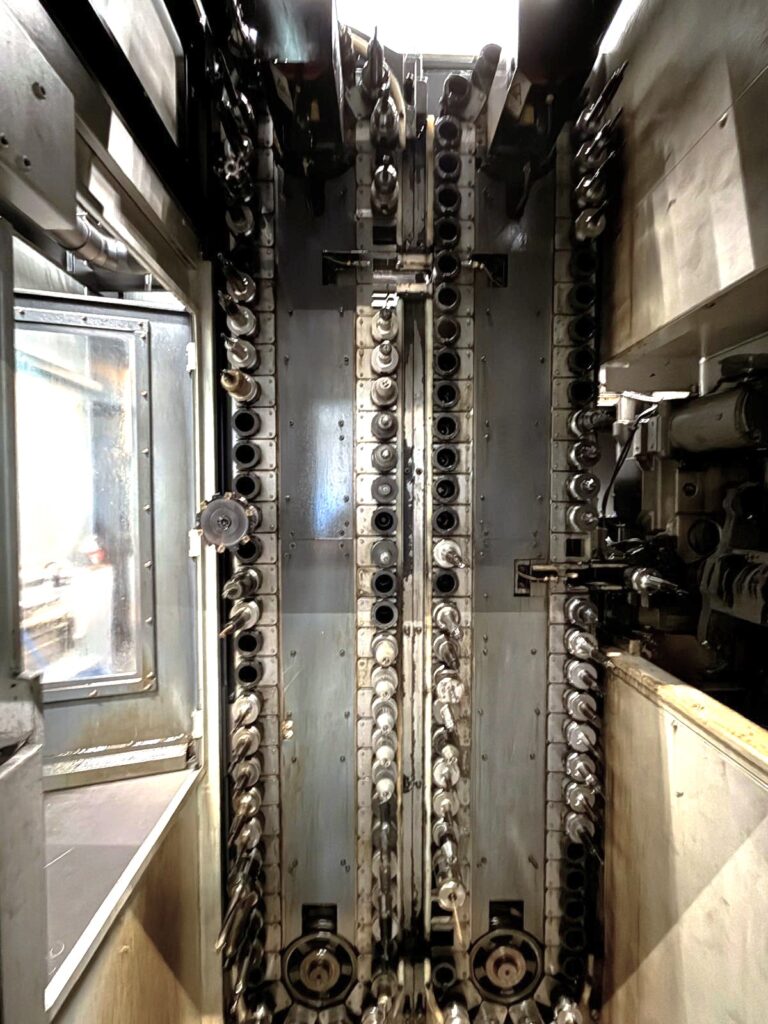

Tool magazine slots: 120
With free neighboring places mm: 140
With occupied neighboring places mm: 70
Max. Tool Length mm: 400
Max tool weight kg: 8
Tool-to-tool time s: 0,9
Chip-to-chip time s: 2,8
Equipment
Chip conveyor
Signal lamp
4th axis
Ready for internal cooling (40/80 bar)

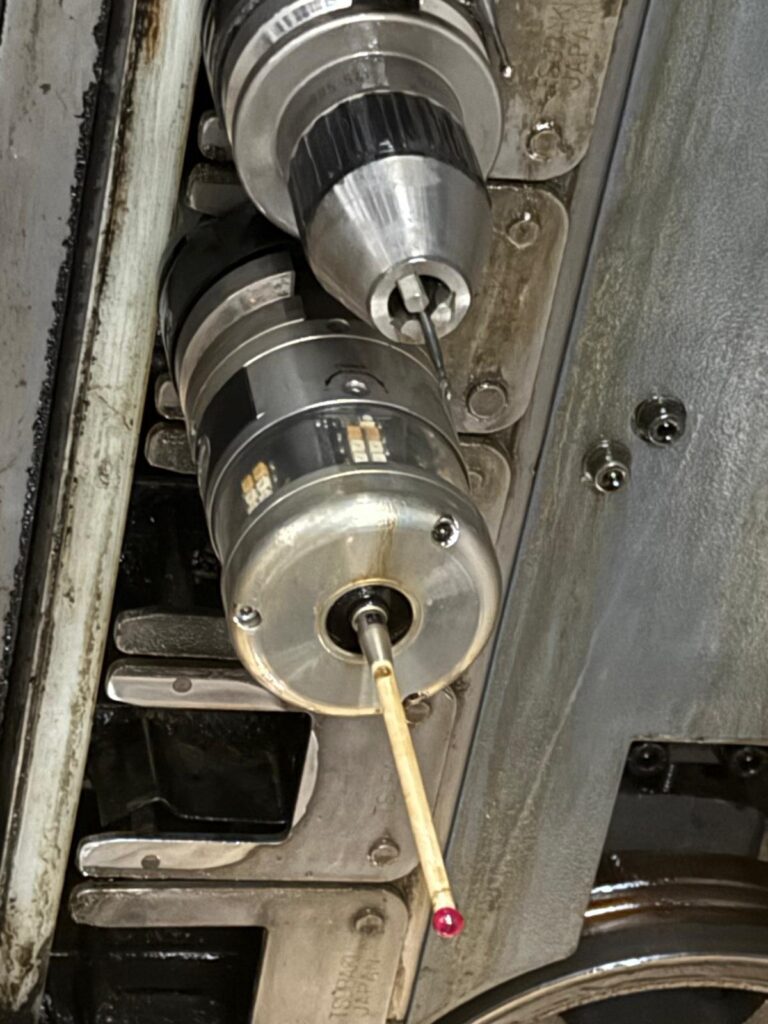

RENISHAW OMP60

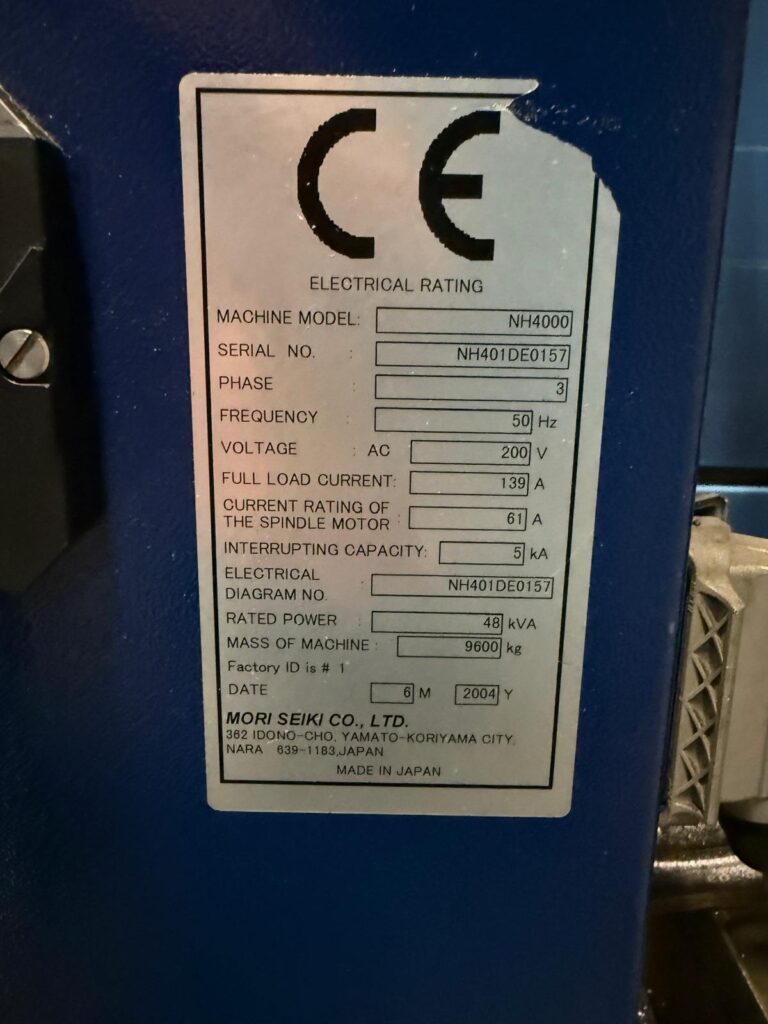

CE
Round pallet storage
Measuring system (worktable)

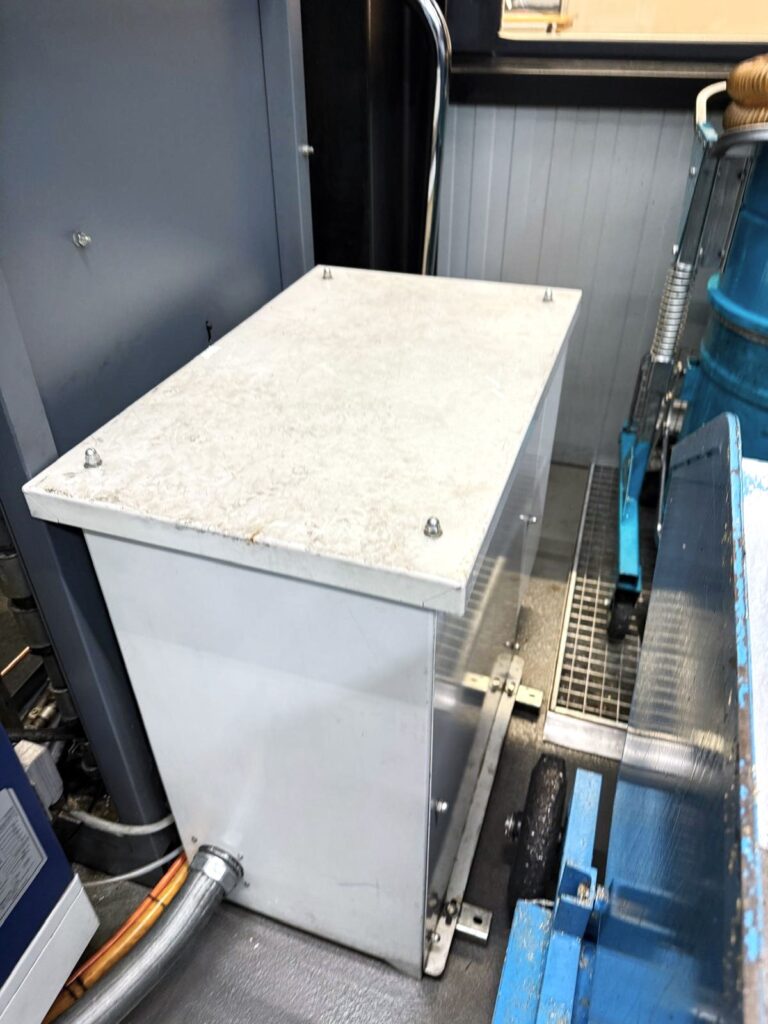

Cooling
Tank capacity: 500
High-pressure bar: 70

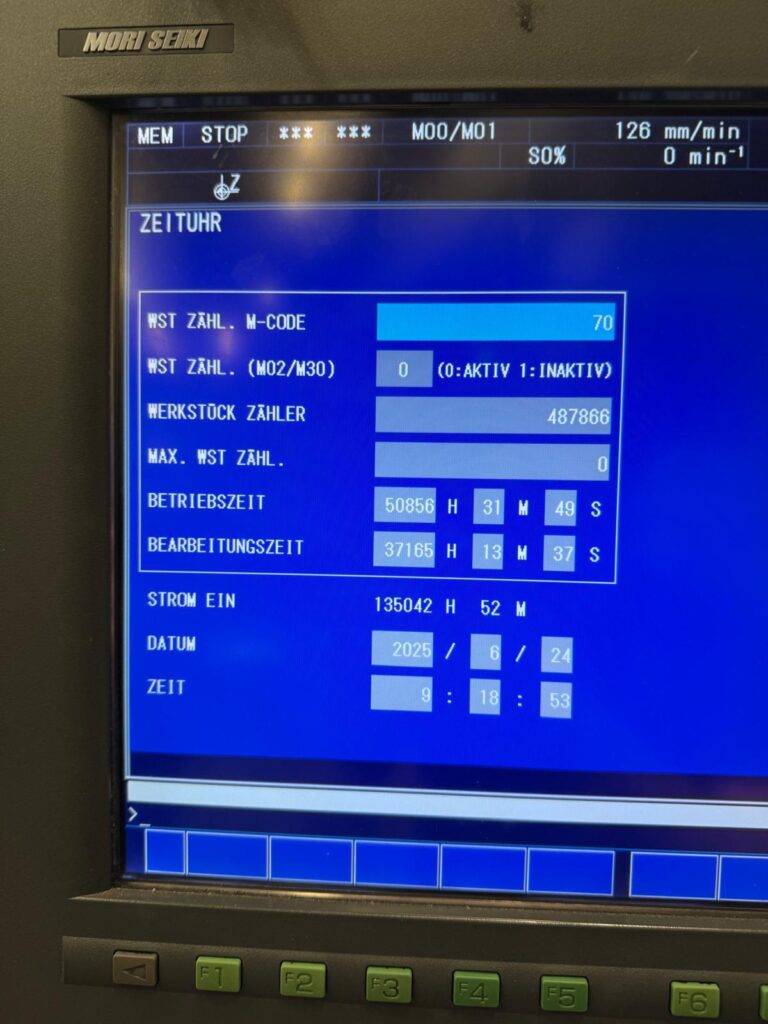

Machine running times
Under power: 135.042
Rated power kVA: 32,8
Operating Time: 37.165
Basic machine dimensions / weight
Length mm: 4.004
Width mm: 2.397
Height mm: 2.711
Weight kg: 9.600
董雁冰
CEO
Cillian Weber
CEO
Mori Seiki
Germany
2004
Request a quote
Sales Department
Mori Seiki
Germany
2004
CNC controller: FS-18IMB (MAPPS 2)
Axes
X-axis travel mm: 560
Y-axis travel mm: 560
Z-axis travel mm: 630
Rapid traverse m/min: 50
Rotary Worktable (4th axis): FULL 4TH AXIS ROTARY TABLE
Worktable
Number of pallets: 3
Table dimensions mm: 400
Maximum workpiece size (D x H) mm: 560 x 800
Max. workpiece weight kg: 300
APC time s: 6
Spindle
Spindle speed rpm: 14.000
Spindle drive power kW: 18.5/11 KW
Spindle torque Nm: 120 Nm (10%ED)
Tool system
Tool holder: BT-40
Tool magazine slots: 120
With free neighboring places mm: 140
With occupied neighboring places mm: 70
Max. Tool Length mm: 400
Max tool weight kg: 8
Tool-to-tool time s: 0,9
Chip-to-chip time s: 2,8
Equipment
Chip conveyor
Signal lamp
4th axis
Ready for internal cooling (40/80 bar)
RENISHAW OMP60
CE
Round pallet storage
Measuring system (worktable)
Cooling
Tank capacity: 500
High-pressure bar: 70
Machine running times
Under power: 135.042
Rated power kVA: 32,8
Operating Time: 37.165
Basic machine dimensions / weight
Length mm: 4.004
Width mm: 2.397
Height mm: 2.711
Weight kg: 9.600
