Technical characteristics

CNC controller: Mitsubishi M-730UM
Capacity
X-axis travel mm: 260
Z-axis travel mm: 590
Turning length mm: 515
Swing over bed mm: ø: 923.8
Swing over cross-slide mm: 755

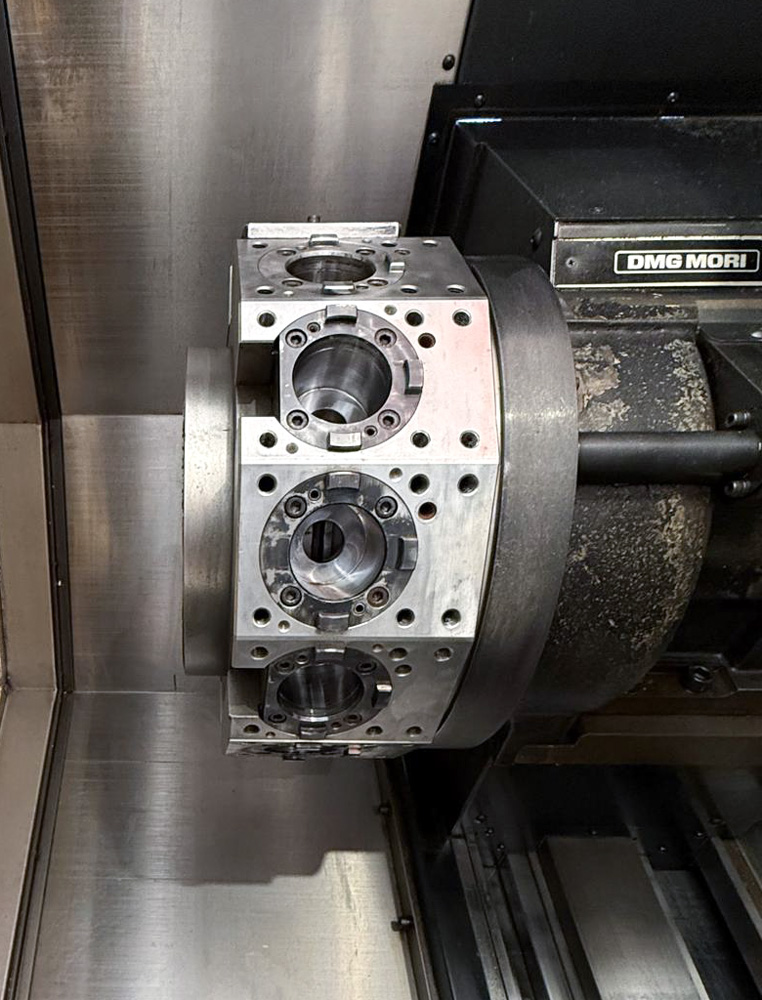

Upper turret
Number of tool slots St .: 12
Speed driven tools RPM: 10.000
Main spindle
Speed spindle rpm: 6.000
Spindle nose: JIS A2-5
Tailstock
Tailstock travel mm: 564
Holder: MT4
Equipment
Chip conveyor
Signal lamp

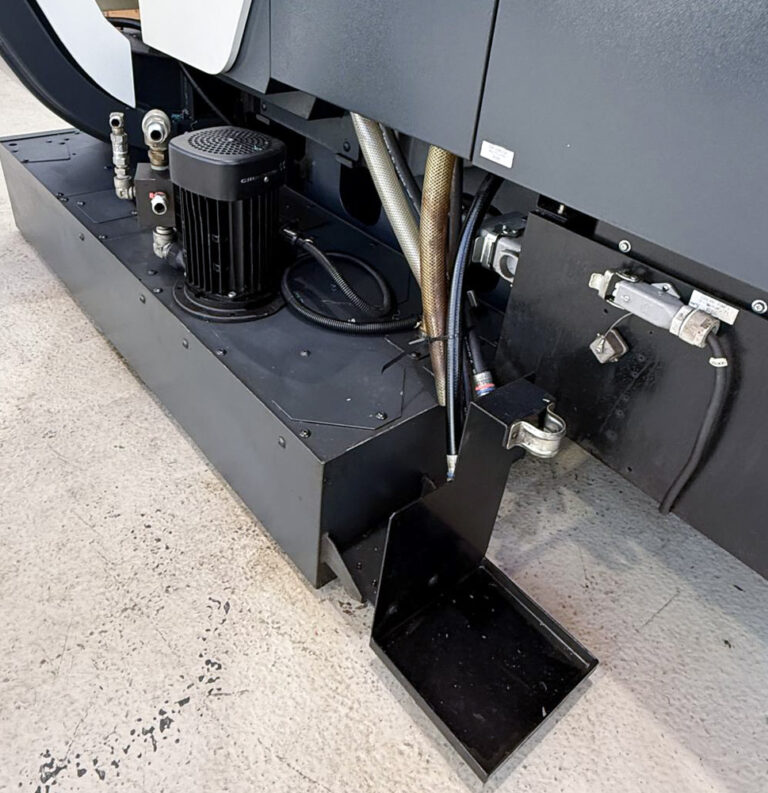

High pressure pump
Interface for Bar feeder

Working time hours
Under power: 35.732
Spindle: 7.408
Basic machine dimensions / weight
Length mm: 2.820
Width mm: 2.082
Height mm: 2.145
Weight kg: 4.900

Reviews of who have bought their industrial machine at 3Axis Group

我公司拥有一支专业而称职的团队。我们的团队使DMU 80加工中心的出口过程和CCIC的管理变得简单而令人满意。此外，团队进行了完美的协调，以保证购买过程！毋庸置疑，我们是您最可靠的合作伙伴。

 5/5

The team at 3axisgroup made the process of purchasing the Makino D500 very easy. They took care of everything saving me time and effort.

 5/5

Mori Seiki

NLX 1500MC 500

MORI SEIKI NLX 1500MC 500 – CNC Lathe

Place of location

Germany

Year of manufacture

2015
