Technical characteristics

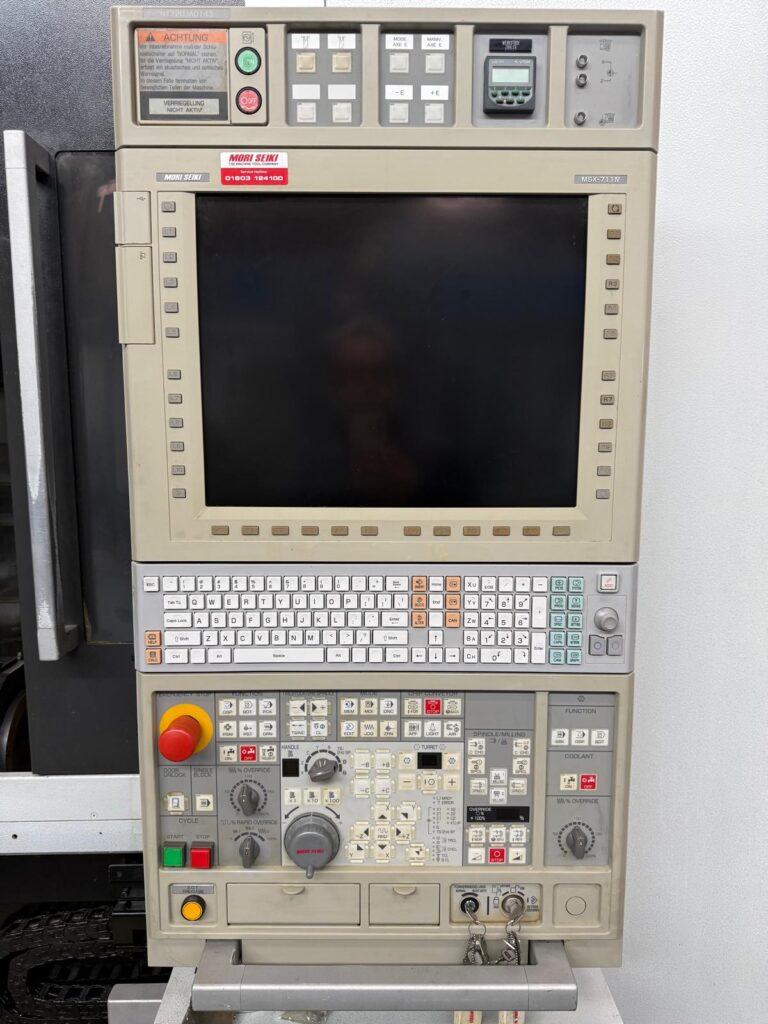

CNC controller: FANUC FS-31iA5 (MAPPS 4)
Capacity
X-axis travel mm: 685
Y-axis travel mm: 125
Z-axis travel mm: 1075
Turning length mm: 1045
Max. turning diameter mm: ø: 600
Bar work capacity mm: 65

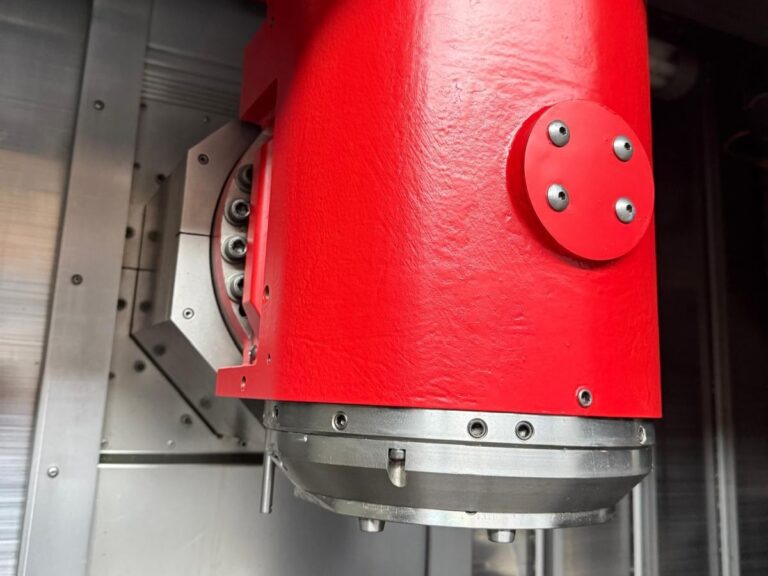

Turn-mill spindle
Full indexing specifications: YES
B-axis degree: 120º FULL INDEXING SPECIFICATION
Speed spindle rpm: 12000
Drive power kW: 18.5/11
Tool magazine
Magazine places: 80
Tool holder: CAPTO C5
Tool length max. mm: 250
Tool diameter max. mm: 70/130
Tool weight max kg: 5

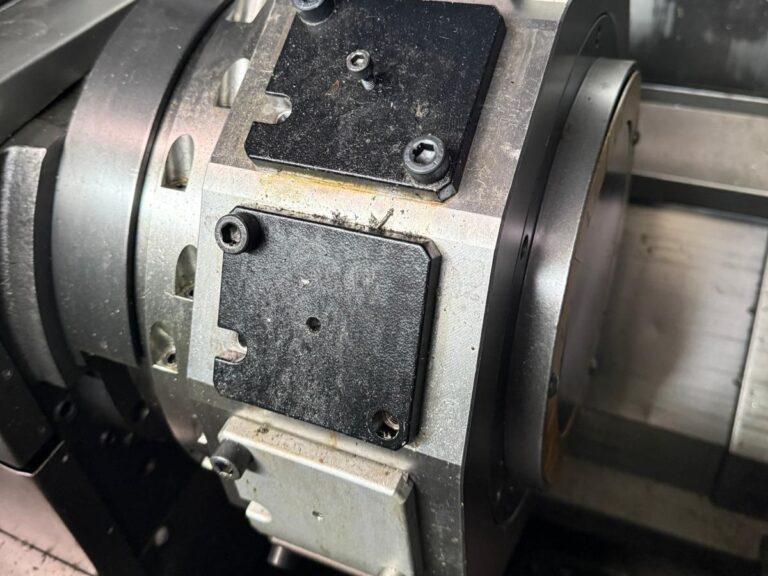

Lower turret
Number of tool slots St .: 12
Drive power driven tools kW: 5.5/3.7
Main spindle
Speed spindle rpm: 5000
Drive power spindle kW: 25/22 (100%/40%ED)
Spindle bore mm: 73

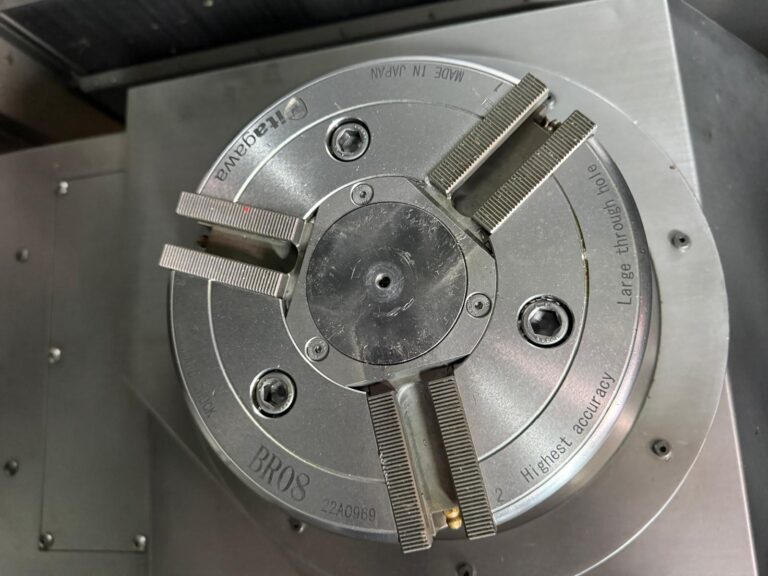

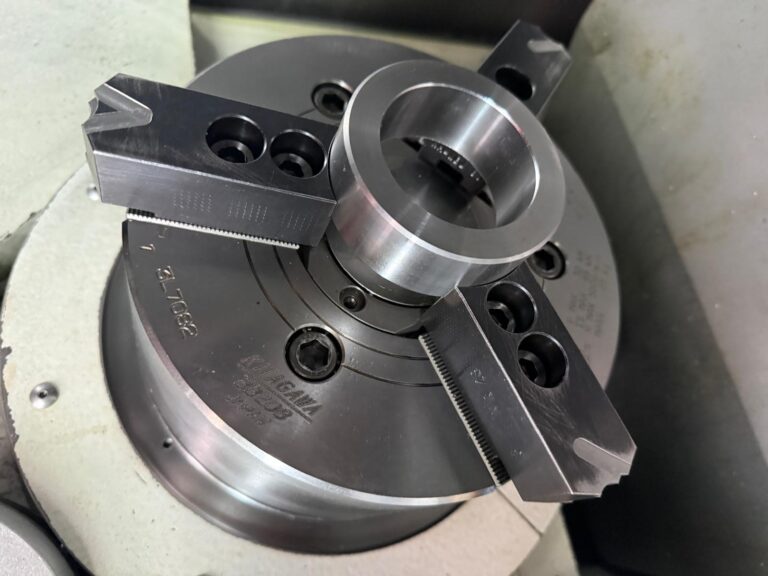

Chuck type: HOLLOW CHUCK (8″)
Manufacturer: KITAGAWA
Counter spindle
Speed spindle rpm: 5000
Drive power spindle kW: 25/22 (100%/40%ED)
Spindle bore mm: 73
Chuck type: HOLLOW CHUCK (8″)

Manufacturer: KITAGAWA
Equipment

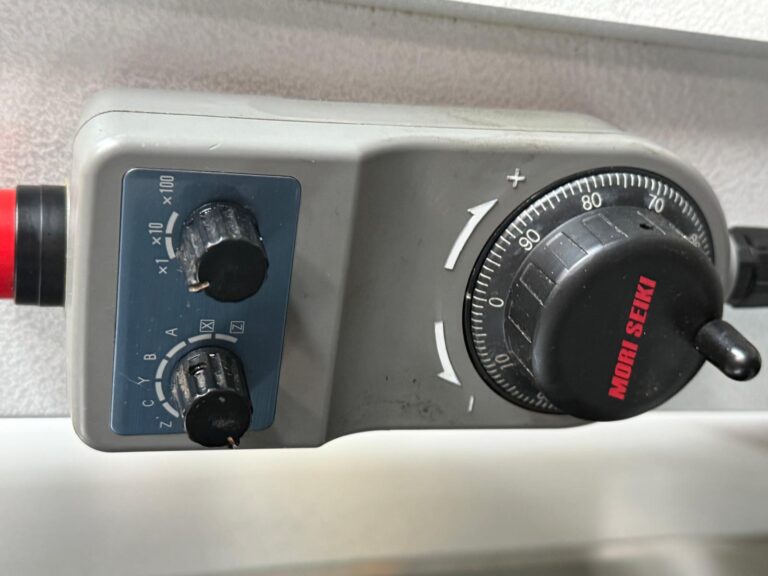

Electronic Handwheel

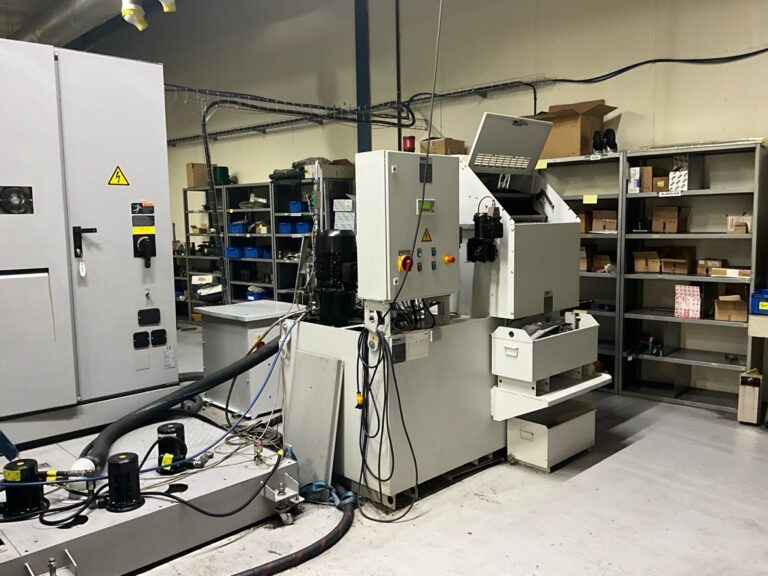

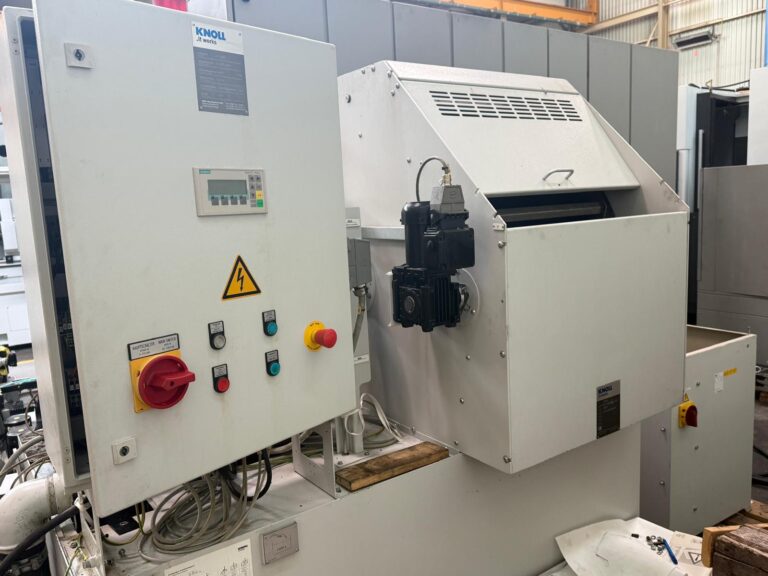

Chip conveyor
Swivel head
Signal lamp
High pressure pump
Mist collector
Workarea light
CE conformity
Chuck foot switch (double) for main and counter spindle
Coolant gun

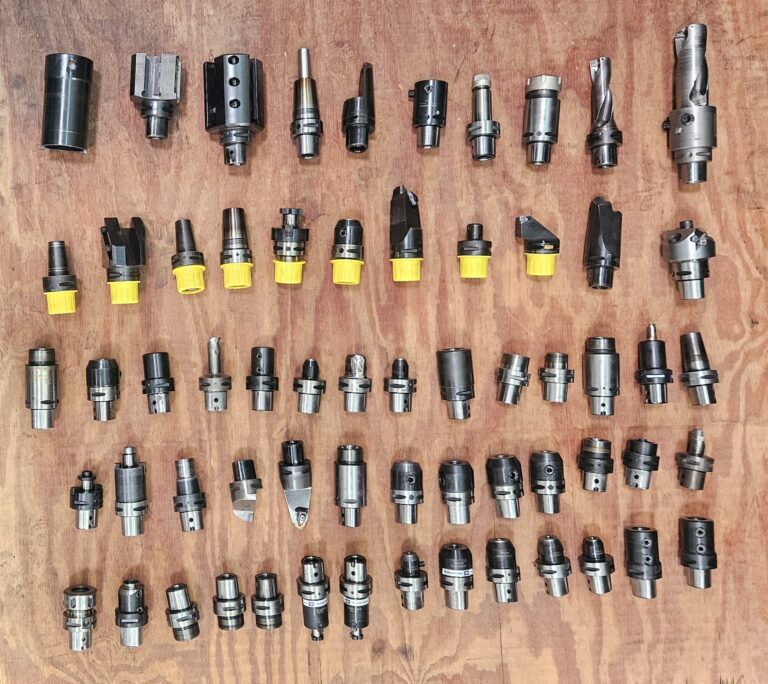

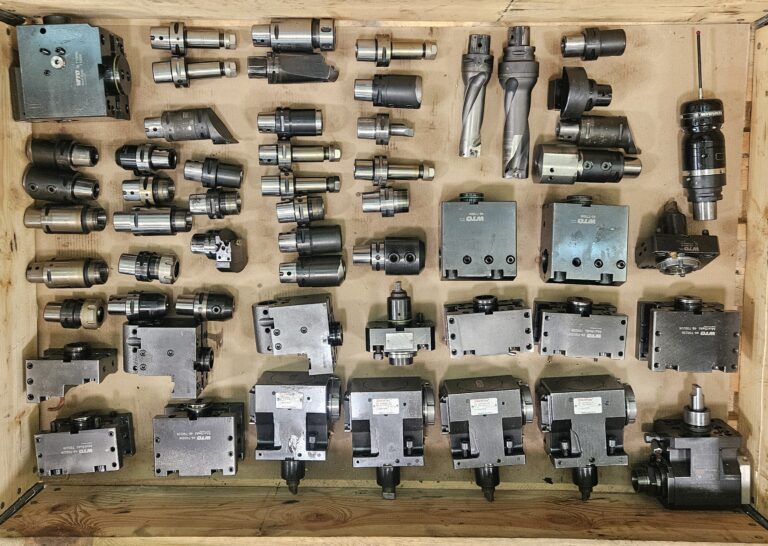

Toolholders are not included
Precision NC rotary table, rapid traverse and feed rate 100 1/min incl. direct measuring system
Oil skimmer
Linear scales
Gantry loader LG-10 AII
RENISHAW MP700

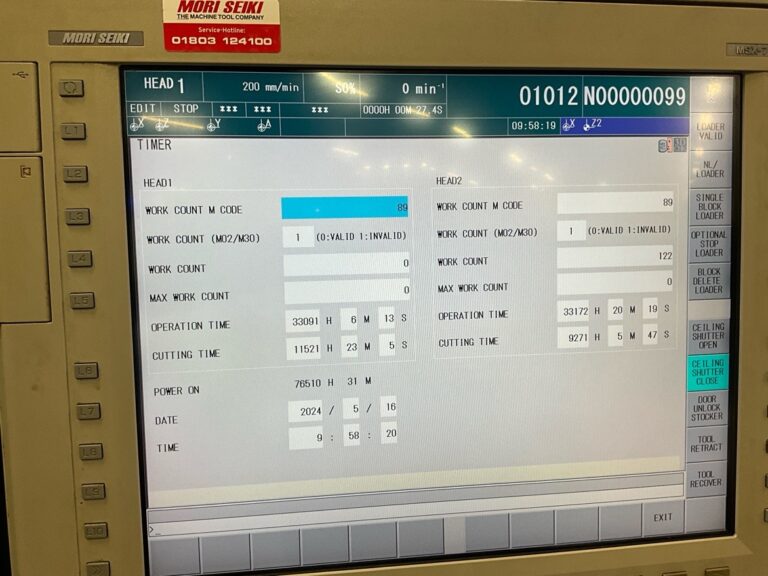

Working time hours
Under power: 76.510
Spindle 1: 11.521
Spindle 2: 9.271

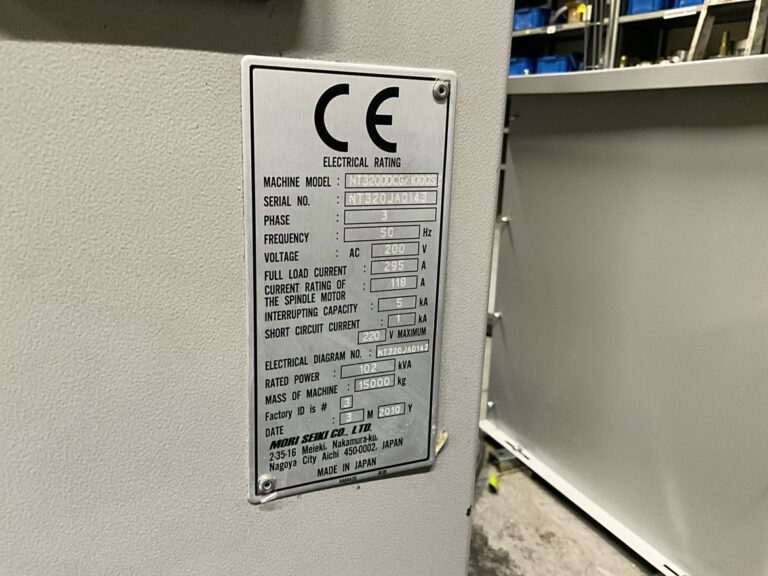

Potencial nominal kVA: 102
Basic machine dimensions / weight
Length mm: 8.000
Width mm: 4.000
Height mm: 3.000
Weight kg: 15.000

Reviews of who have bought their industrial machine at 3Axis Group

我公司拥有一支专业而称职的团队。我们的团队使DMU 80加工中心的出口过程和CCIC的管理变得简单而令人满意。此外，团队进行了完美的协调，以保证购买过程！毋庸置疑，我们是您最可靠的合作伙伴。

 5/5

The team at 3axisgroup made the process of purchasing the Makino D500 very easy. They took care of everything saving me time and effort.

 5/5

Mori Seiki

NT 3200DCG /1000SZ

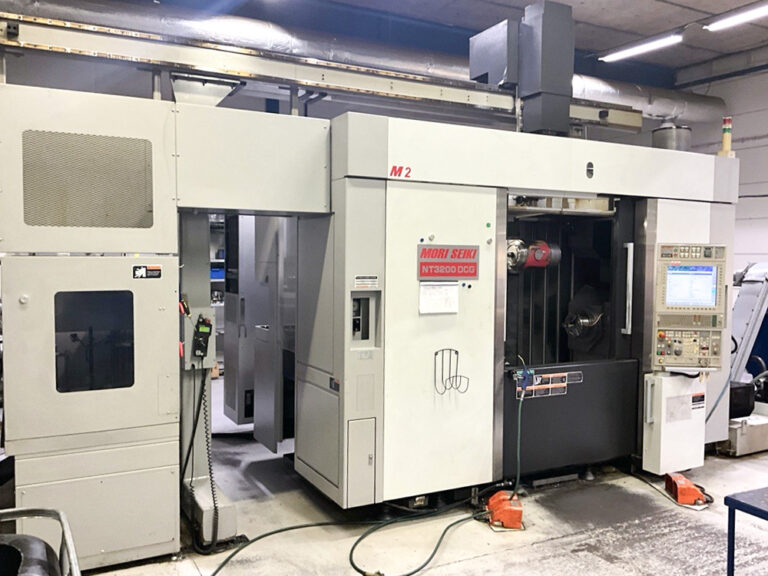

Multitasking Lathe – MORI SEIKI NT 3200DCG /1000SZ
