CNC controller: FS-31IA5 (MAPPS 4)
Capacity
Turning length mm: 1.542
Max. turning diameter mm: ø: ø660
Swing over bed mm: ø: ø730
Turning diameter f. lower turret mm: ø350
Distance between spindle centers mm: 1.862
Bar work capacity mm: 91

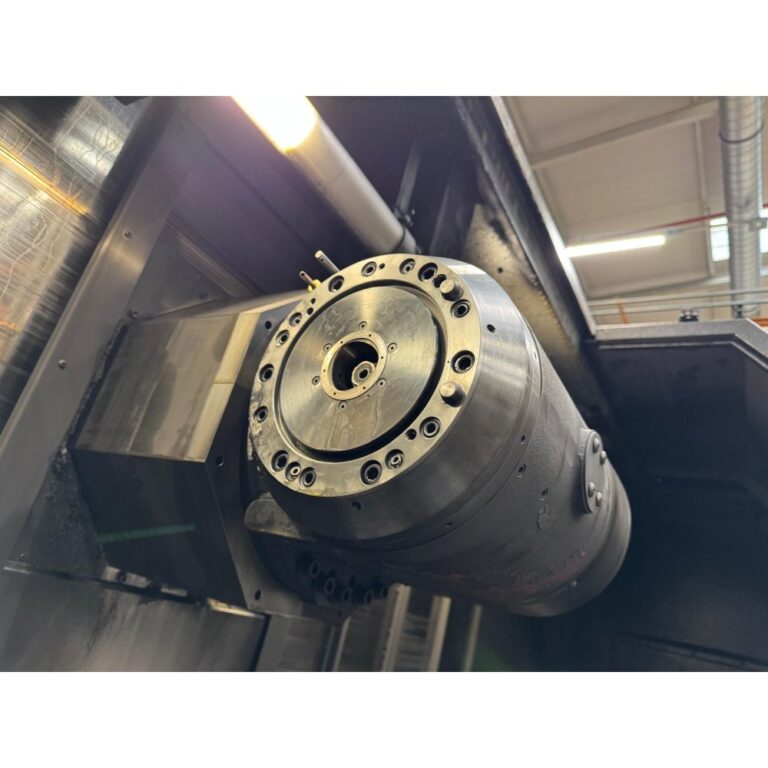

Turn-mill spindle
Full indexing specifications: Yes
X-axis travel mm: 750
Z-axis travel mm: 1.550+100 (for ATC)
B-axis degree: ±180º (0.0001°)
Speed spindle rpm: 12.000
Y-axis travel mm: ±210
Drive power kW: 18,5/11
Tool magazine
Magazine places: 100
Tool holder: CAPTO C6
Tool diameter max. mm: 140
Tool weight max kg: 8
Lower turret
X-axis travel mm: 195
Z-axis travel mm: 1.525
Number of tool slots St .: 12
Indexing time s: 0.28
Main spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 22/18,5 (30min/cont)
Manufacturer: KITAGAWA
Maximun torque Nm: 60kN

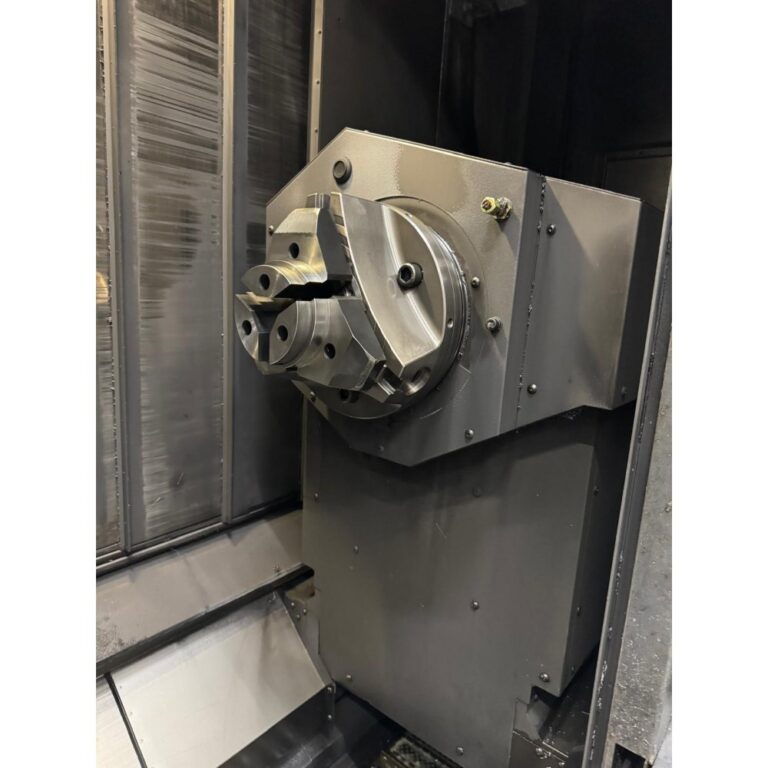

Counter spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 22/18,5 (30min/cont)
Manufacturer: KITAGAWA
Maximun torque Nm: 60kN
Coolant system
High-pressure bar: 28
Equipment
Chip conveyor
Rinsing gun
Signal lamp
Workarea light
CE conformity
Chuck foot switch (double) for main and counter spindle
Internal coolant supply
Measuring probe
STEADY REST (Luneta)
Working time hours
Spindle 1: 37.730
Spindle 2: 132
Potencial nominal kVA: 94
Basic machine dimensions / weight
Length mm: 6.800
Width mm: 3.200
Height mm: 2.900
Weight kg: 25.600
