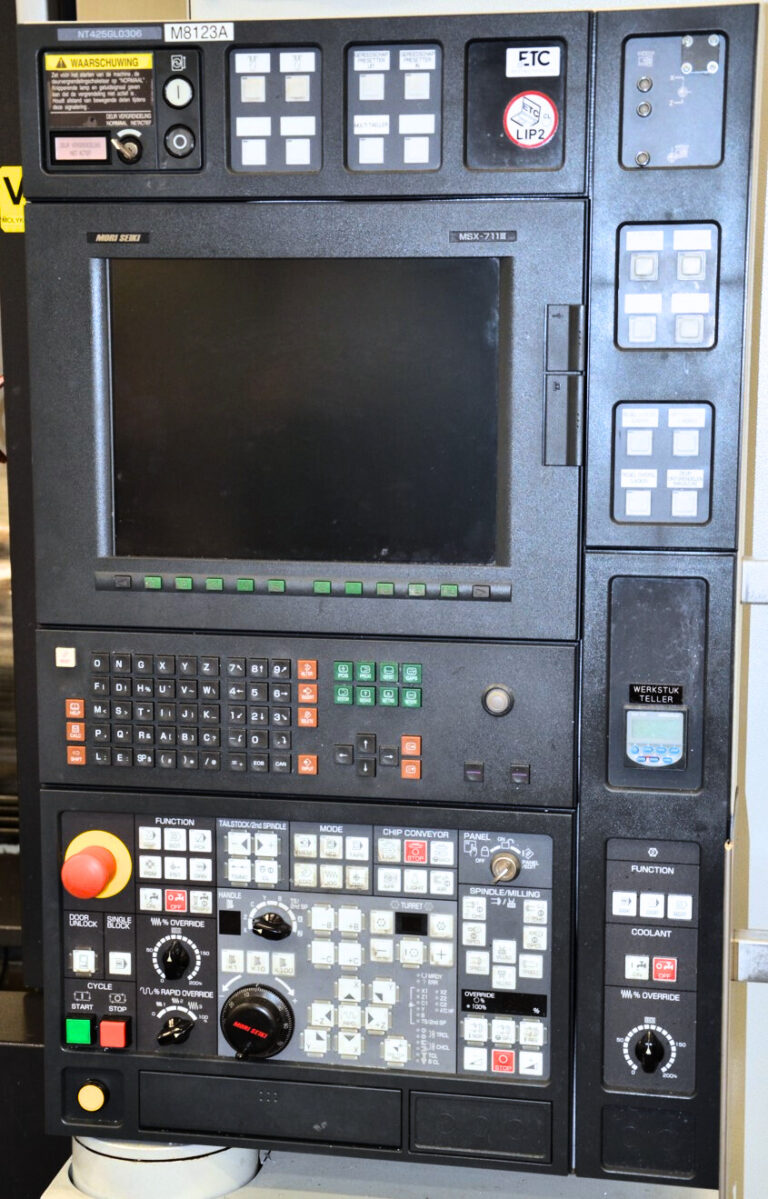

CNC controller: FS-31IA5 (MAPPS 4)
Capacity
Turning length mm: 1.542
Max. turning diameter mm: ø: ø660
Swing over bed mm: ø: ø730
Distance between spindle centers mm: 1.862
Turning diameter f. lower turret mm: ø350
Bar work capacity mm: 91

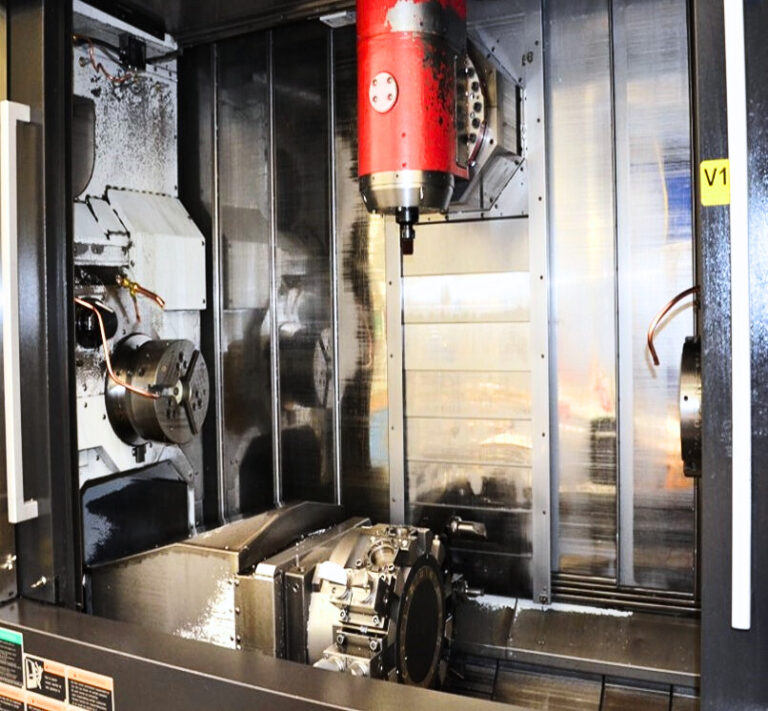

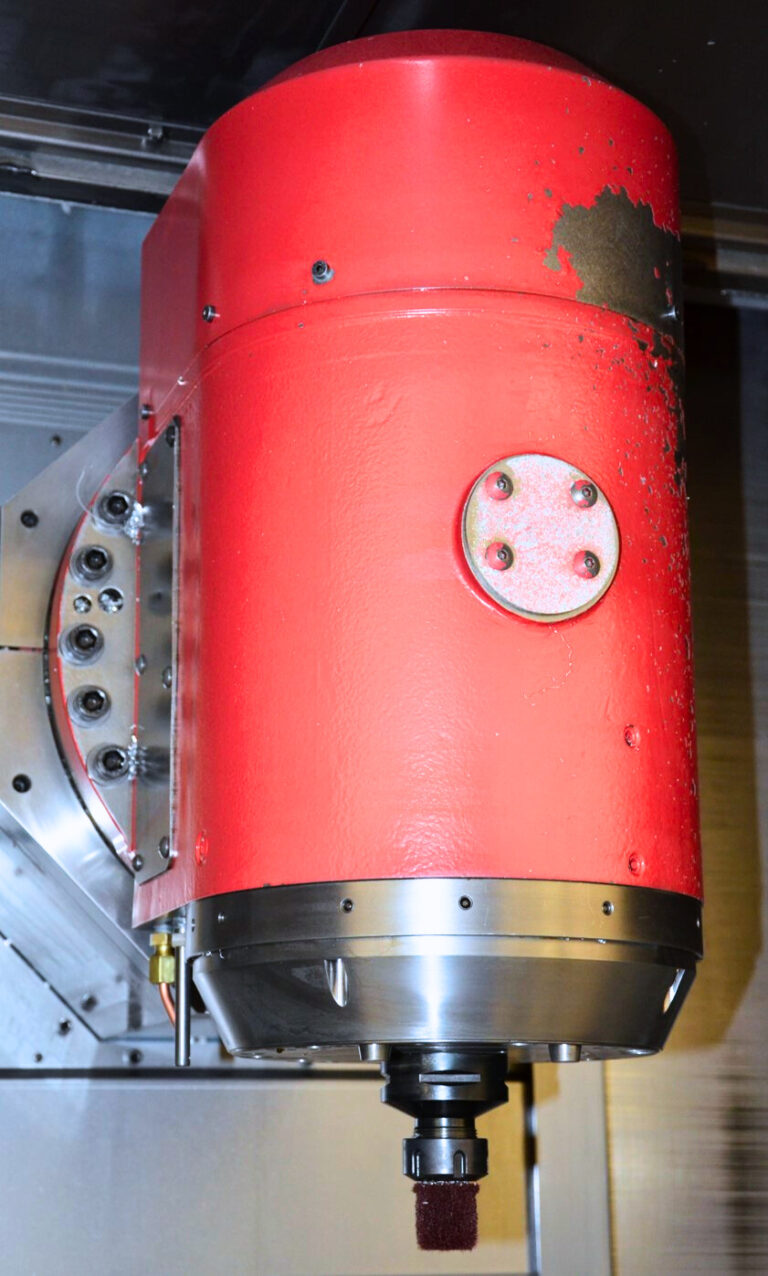

Turn-mill spindle
Full indexing specifications: Yes
X-axis travel mm: 750
Z-axis travel mm: 1.550+100 (for ATC)
B-axis degree: ±180º (0.001°)
C-axis degree: ±210
Speed spindle rpm: 12.000
Drive power kW: 18,5/11
Tool magazine
Magazine places: 100
Tool holder: CAPTO C6
Tool diameter max. mm: 140
Tool weight max kg: 8
Lower turret
X-axis travel mm: 195
Z-axis travel mm: 1.525
Number of tool slots St .: 12

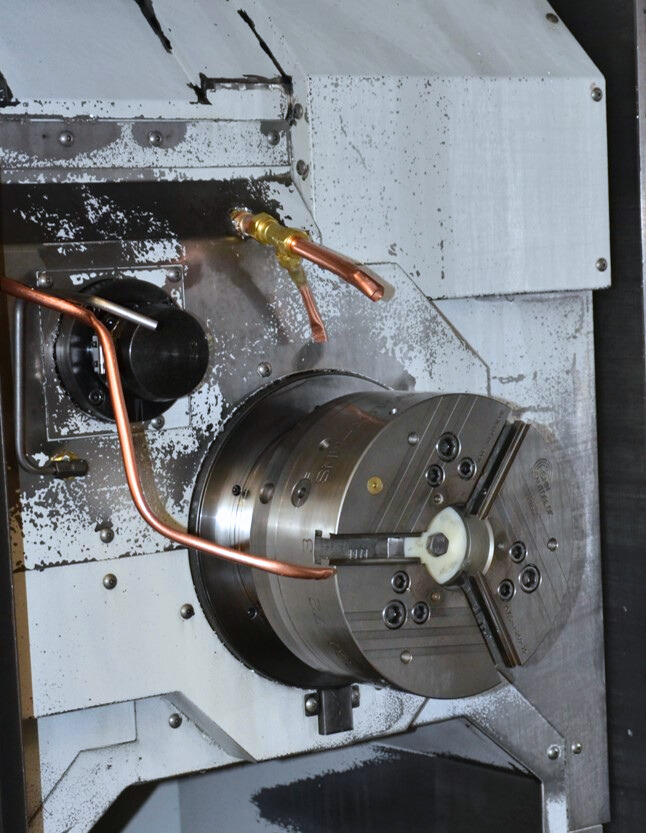

Main spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 22/18,5 (30min/cont)

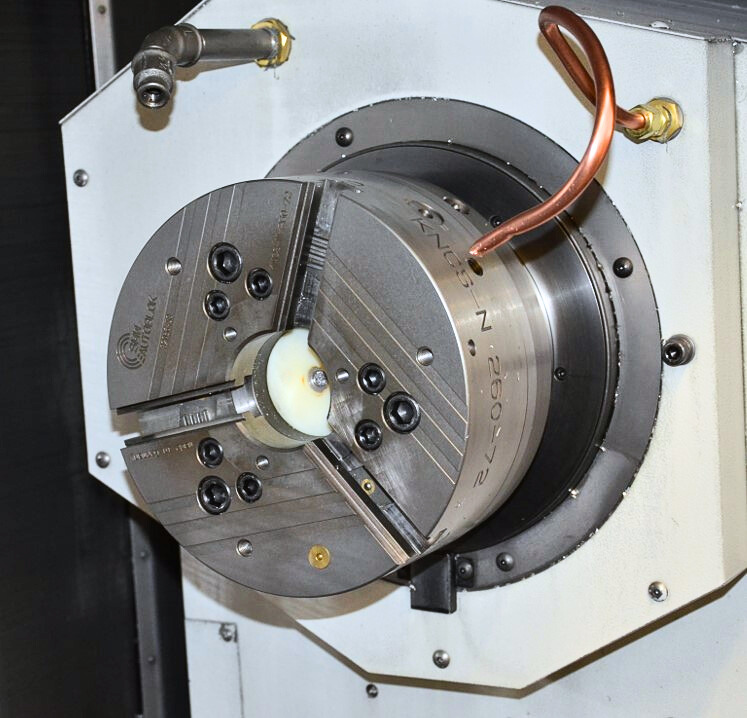

Counter spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 22/18,5 (30min/cont)

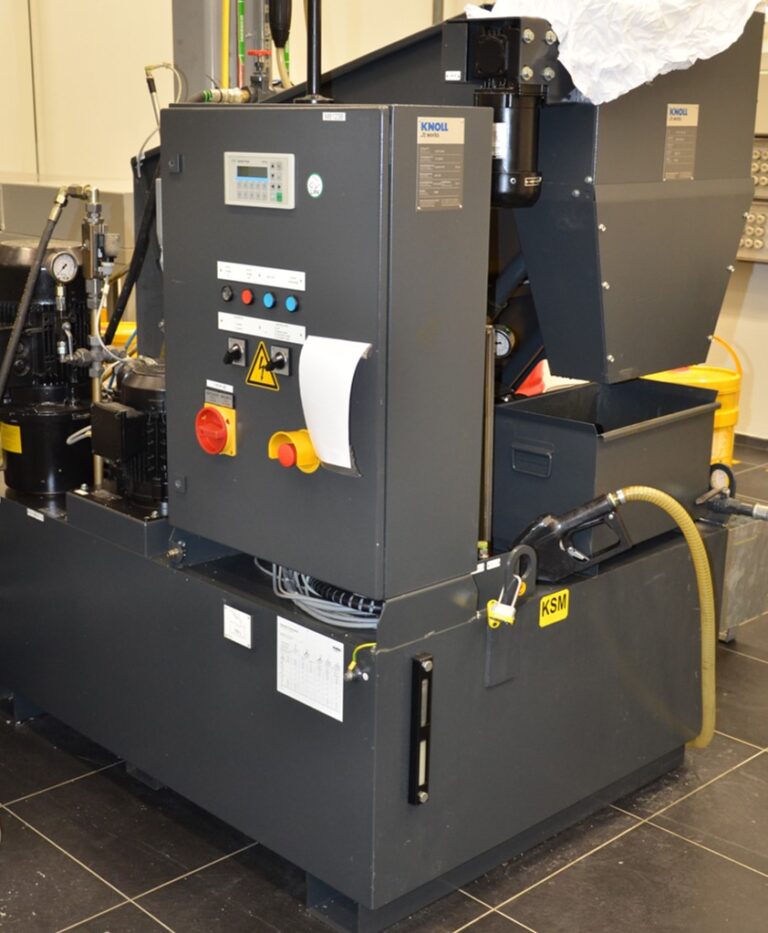

Coolant system
High-pressure bar: 28
Equipment
Electronic Handwheel
Chip conveyor
Rinsing gun
Signal lamp
Workarea light
Internal coolant supply
Measuring probe

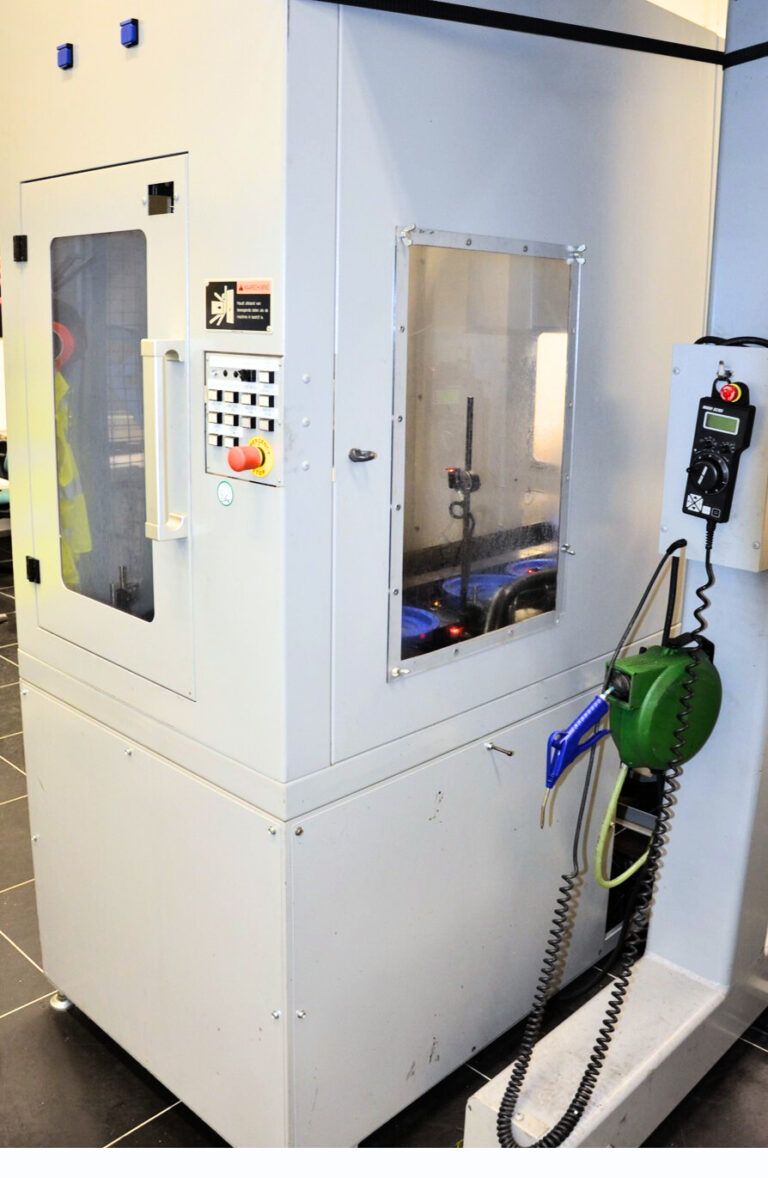

Gantry loader LG-10; 10 Pallets, 75kg per pallet, pieces of Ø200 x 150 (W x H)
Basic machine dimensions / weight
Length mm: 6.800
Width mm: 3.200
Height mm: 2.900
Weight kg: 25.600
董雁冰
CEO
Cillian Weber
CEO

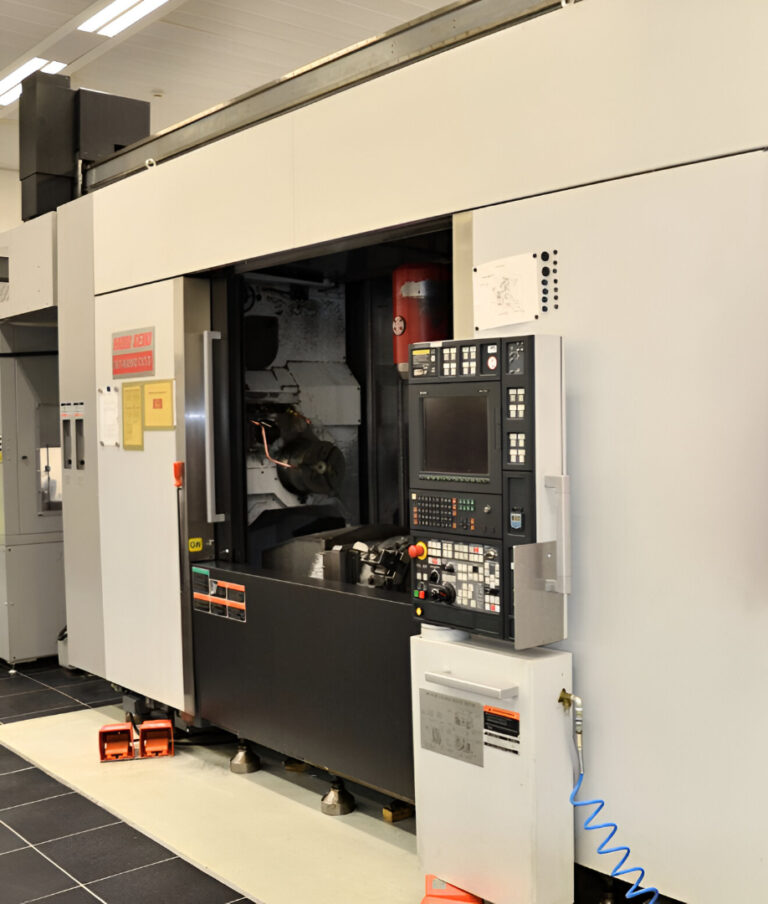

Mori Seiki
Netherlands
2008
Mori Seiki
Netherlands
2008
CNC controller: FS-31IA5 (MAPPS 4)
Capacity
Turning length mm: 1.542
Max. turning diameter mm: ø: ø660
Swing over bed mm: ø: ø730
Distance between spindle centers mm: 1.862
Turning diameter f. lower turret mm: ø350
Bar work capacity mm: 91
Turn-mill spindle
Full indexing specifications: Yes
X-axis travel mm: 750
Z-axis travel mm: 1.550+100 (for ATC)
B-axis degree: ±180º (0.001°)
C-axis degree: ±210
Speed spindle rpm: 12.000
Drive power kW: 18,5/11
Tool magazine
Magazine places: 100
Tool holder: CAPTO C6
Tool diameter max. mm: 140
Tool weight max kg: 8
Lower turret
X-axis travel mm: 195
Z-axis travel mm: 1.525
Number of tool slots St .: 12
Main spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 22/18,5 (30min/cont)
Counter spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 22/18,5 (30min/cont)
Coolant system
High-pressure bar: 28
Equipment
Electronic Handwheel
Chip conveyor
Rinsing gun
Signal lamp
Workarea light
Internal coolant supply
Measuring probe
Gantry loader LG-10; 10 Pallets, 75kg per pallet, pieces of Ø200 x 150 (W x H)
Basic machine dimensions / weight
Length mm: 6.800
Width mm: 3.200
Height mm: 2.900
Weight kg: 25.600
