Machine sold
Besides, we not only have the best prices in the market, we also offer you the possibility of financing the purchase to facilitate access to top quality machines at an affordable cost.
It is about important investments and that is why we are clear with a 100% safe machinery purchase and sale process, in order that you have all the necessary information to buy such a product.
To avoid that you have to travel, we take care of the transport and shipment of the purchase to your place of work. We collaborate with companies specialised in this type of orders and we can both, sell at source or turnkey.

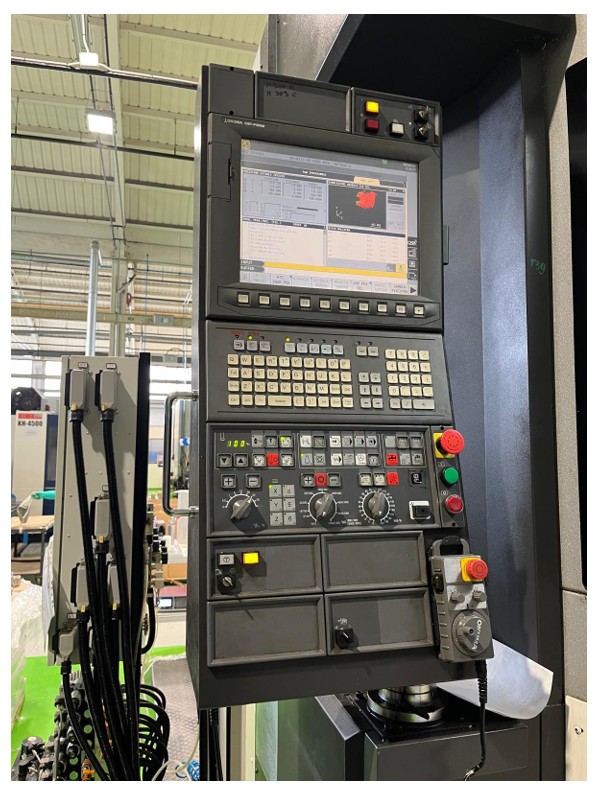

CNC controller: OSP P300M
Axes
X-axis travel mm: 700
Y-axis travel mm: 900
Z-axis travel mm: 780
C-axis degrees: 360º (0,001º)
Distance spindle nose – table surface mm: 50 – 950
Feed rates m/min: 4.6
Rapid traverse m/min: 60
Acceleration in the axes m/s2: 0.7
Worktable
Number of pallets: 1
Table dimensions mm: 500 x 500
Maximum workpiece size (D x H) mm: 800 x 1.000
Max. workpiece weight kg: 800
APC time s: 11.6
Spindle
Spindle speed rpm: 12.000
Spindle drive power kW: 37 / 26
Spindle torque Nm: 419 / 194
Bearing Inner Diameter mm.: 100
Tipo: Taper No.50

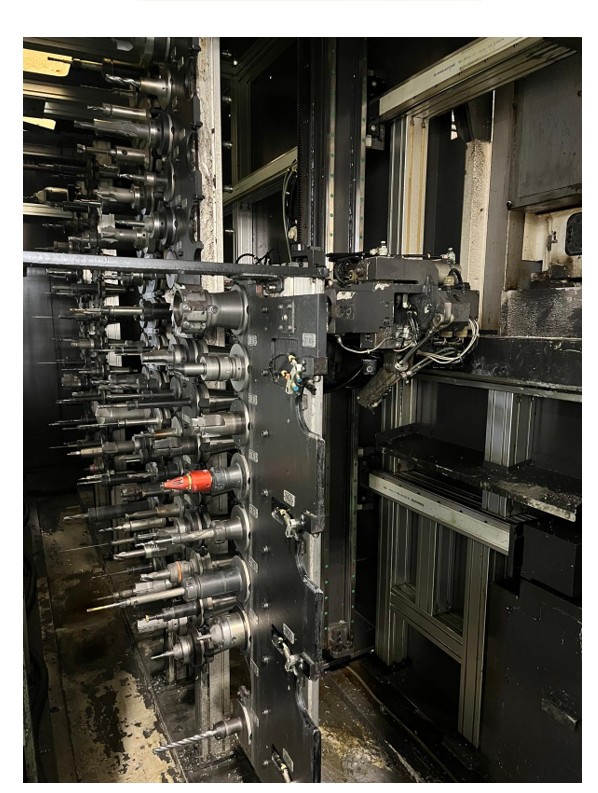

Tool system
Tool holder: BT 50
Tool magazine slots: 171
With free neighboring places mm: 240
Max. Tool Diameter: 105
Max. Tool Length mm: 450
Max tool weight kg: 25
Tool-to-tool time s: 2.0
Chip-to-chip time s: 4.4
Equipment
Electronic Handwheel
Chip conveyor
Internal cooling lubricant supply
Workarea light
Machine running times
Under power: 25.443
Rated power kVA: 61
Operating Time: 4.846
Basic machine dimensions / weight
Length mm: 3.110
Width mm: 5.998
Height mm: 3.173
Weight kg: 21.500
董雁冰
CEO
Cillian Weber
CEO
Okuma
Italy
2013
Okuma
Italy
2013
CNC controller: OSP P300M
Axes
X-axis travel mm: 700
Y-axis travel mm: 900
Z-axis travel mm: 780
C-axis degrees: 360º (0,001º)
Distance spindle nose – table surface mm: 50 – 950
Feed rates m/min: 4.6
Rapid traverse m/min: 60
Acceleration in the axes m/s2: 0.7
Worktable
Number of pallets: 1
Table dimensions mm: 500 x 500
Maximum workpiece size (D x H) mm: 800 x 1.000
Max. workpiece weight kg: 800
APC time s: 11.6
Spindle
Spindle speed rpm: 12.000
Spindle drive power kW: 37 / 26
Spindle torque Nm: 419 / 194
Bearing Inner Diameter mm.: 100
Tipo: Taper No.50
Tool system
Tool holder: BT 50
Tool magazine slots: 171
With free neighboring places mm: 240
Max. Tool Diameter: 105
Max. Tool Length mm: 450
Max tool weight kg: 25
Tool-to-tool time s: 2.0
Chip-to-chip time s: 4.4
Equipment
Electronic Handwheel
Chip conveyor
Internal cooling lubricant supply
Workarea light
Machine running times
Under power: 25.443
Rated power kVA: 61
Operating Time: 4.846
Basic machine dimensions / weight
Length mm: 3.110
Width mm: 5.998
Height mm: 3.173
Weight kg: 21.500
