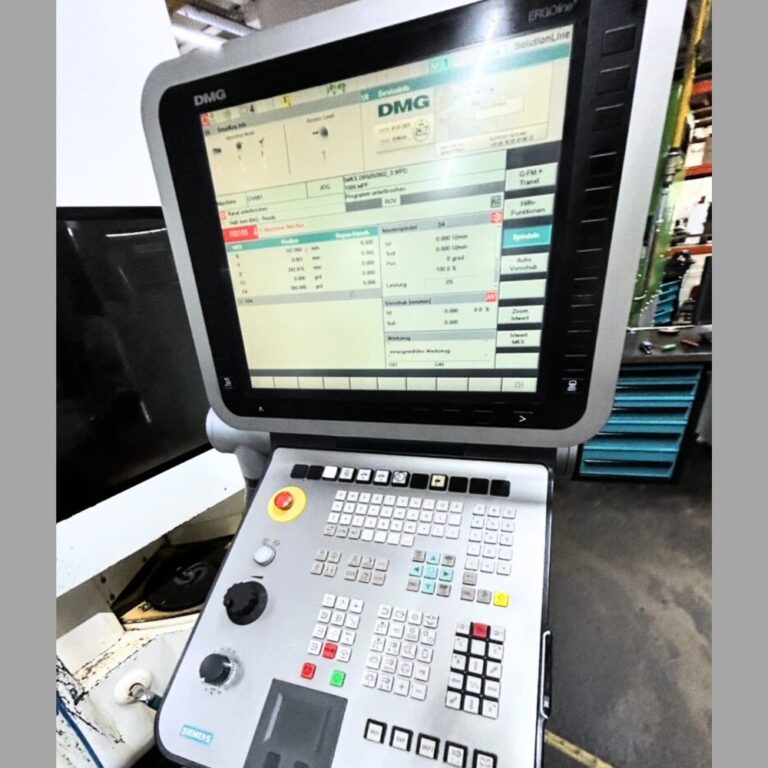

CNC controller: SIEMENS SINUMERIK 840D-ERGOLINE
Capacity
X-axis travel mm: 725
Y-axis travel mm: ± 50
Z-axis travel mm: 300
Turning length mm: 160
Max. turning diameter mm: ø: 250
Swing over bed mm: ø: 320
Tool magazine
Magazine places: 16
Tool holder: VDI-30
Tool length max. mm: 390
Tool diameter max. mm: 140
Lower turret
Number of tool slots St .: 12
Speed driven tools RPM: 4.000
Drive power driven tools kW: 11,7
Milling function: Yes
Main spindle
Speed spindle rpm: 5.000
Drive power spindle kW: 11,7 (40% ED)
Maximun torque Nm: 280 / 360 (100% / 40% ED)
Coolant system
Tank capacity liter: 980 L
High-pressure bar: 8 / 20
Equipment

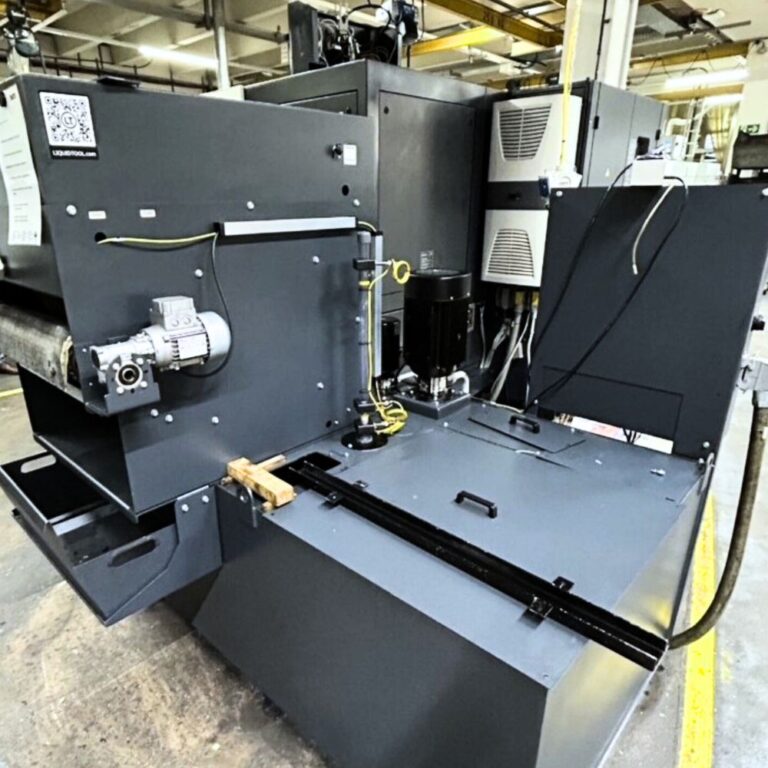

Chip conveyor
CE conformity
Coolant gun
Air blast / coolant switch-over
Internal coolant supply
Paper band filter

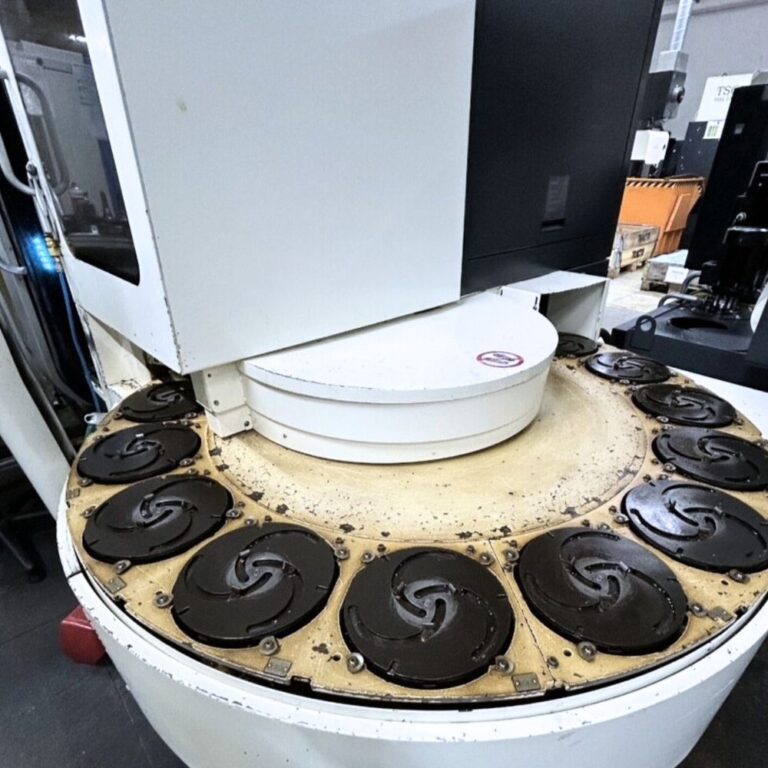

Automatic workpiece magazine loader – 16 positions x ø 220
Working time hours
Under power: 38.000
Cutting Time: 26.000
Basic machine dimensions / weight
Length mm: 3.171
Width mm: 4.254
Height mm: 2.648
Weight kg: 6.000
