Year of construction: 2015

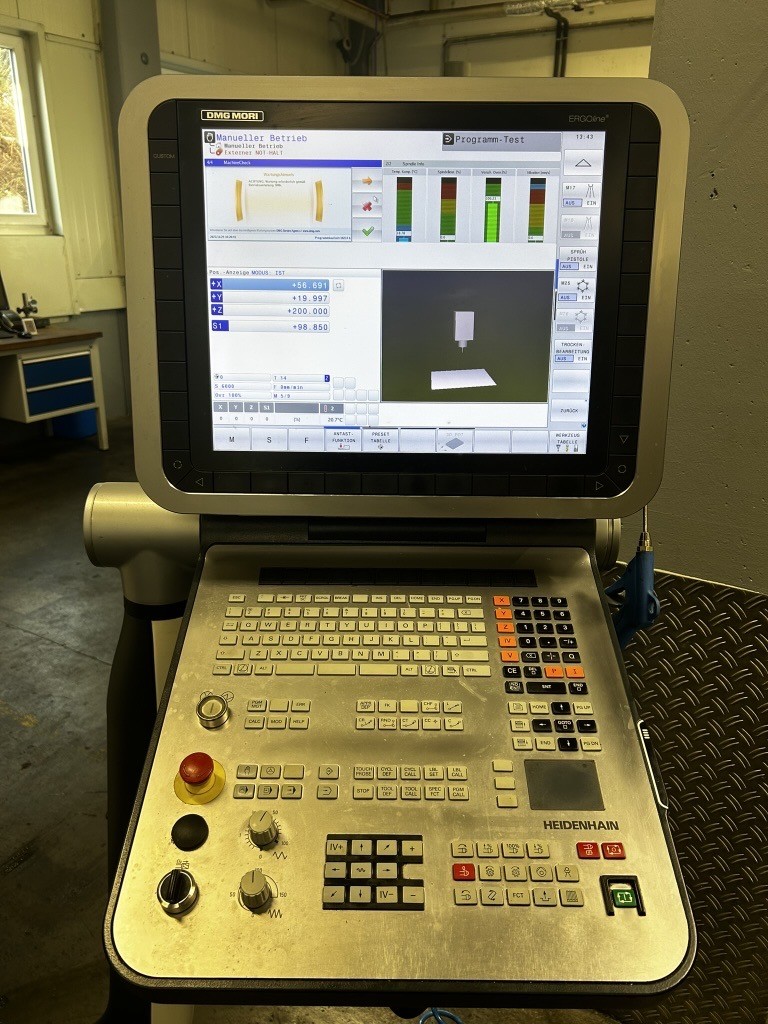

CNC controller: Heidenhain TNC 640
Axes
X-axis travel mm: 850
Y-axis travel mm: 520
Z-axis travel mm: 475
Feed rates m/min: 42
Rapid traverse m/min: 42
Acceleration in the axes m/s2: 5

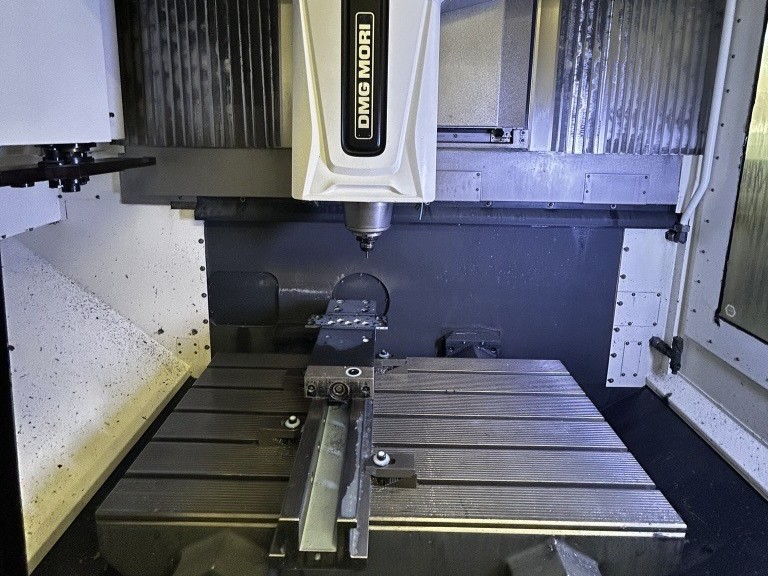

Worktable
Table dimensions mm: 1100×570
Maximum workpiece size (D x H) mm: H=800mm
Max. workpiece weight kg: 1000
Spindle
Spindle speed rpm: 14000
Spindle drive power kW: 20,3/14,5 (40/100%ED)
Cooling
Cooling through the Spindle Center bar: 20
Tank capacity: 600
Tool system
Tool holder: SK 40
Tool magazine slots: 20
With free neighboring places mm: 130
With occupied neighboring places mm: 80
Max. Tool Length mm: 300
Chip-to-chip time s: 5.7
Equipment
Electronic Handwheel
Chip conveyor
Infrared probe
Internal cooling lubricant supply
Rinsing gun
Operating mode 4
blowing air through spindle center selectable via M-function
Direct measuring system XYZ
Paper band filter
Machine running times
Under power: —
Spindle Working: —–
Rated power kVA: 19
Basic machine dimensions / weight
Length mm: 3600
Width mm: 2300
Height mm: 2700
Weight kg: 5750
董雁冰
CEO
Cillian Weber
CEO
2015
Request a quote
Sales Department
2015
Year of construction: 2015
CNC controller: Heidenhain TNC 640
Axes
X-axis travel mm: 850
Y-axis travel mm: 520
Z-axis travel mm: 475
Feed rates m/min: 42
Rapid traverse m/min: 42
Acceleration in the axes m/s2: 5
Worktable
Table dimensions mm: 1100×570
Maximum workpiece size (D x H) mm: H=800mm
Max. workpiece weight kg: 1000
Spindle
Spindle speed rpm: 14000
Spindle drive power kW: 20,3/14,5 (40/100%ED)
Cooling
Cooling through the Spindle Center bar: 20
Tank capacity: 600
Tool system
Tool holder: SK 40
Tool magazine slots: 20
With free neighboring places mm: 130
With occupied neighboring places mm: 80
Max. Tool Length mm: 300
Chip-to-chip time s: 5.7
Equipment
Electronic Handwheel
Chip conveyor
Infrared probe
Internal cooling lubricant supply
Rinsing gun
Operating mode 4
blowing air through spindle center selectable via M-function
Direct measuring system XYZ
Paper band filter
Machine running times
Under power: —
Spindle Working: —–
Rated power kVA: 19
Basic machine dimensions / weight
Length mm: 3600
Width mm: 2300
Height mm: 2700
Weight kg: 5750
