Year of construction: 2001

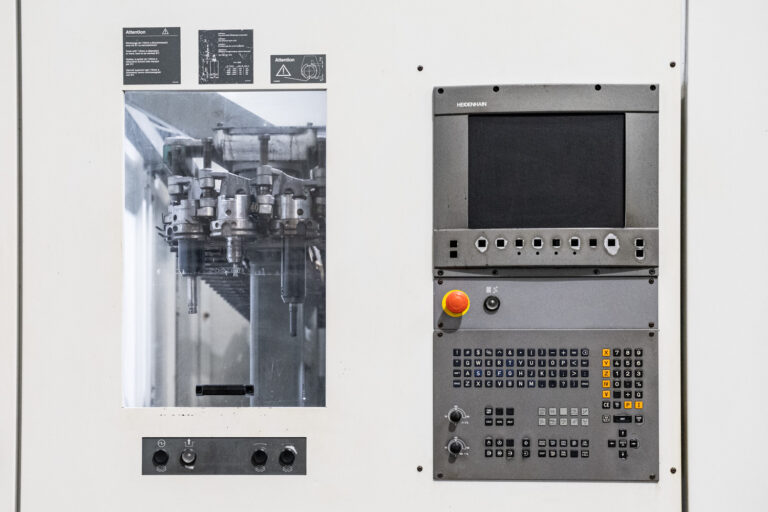

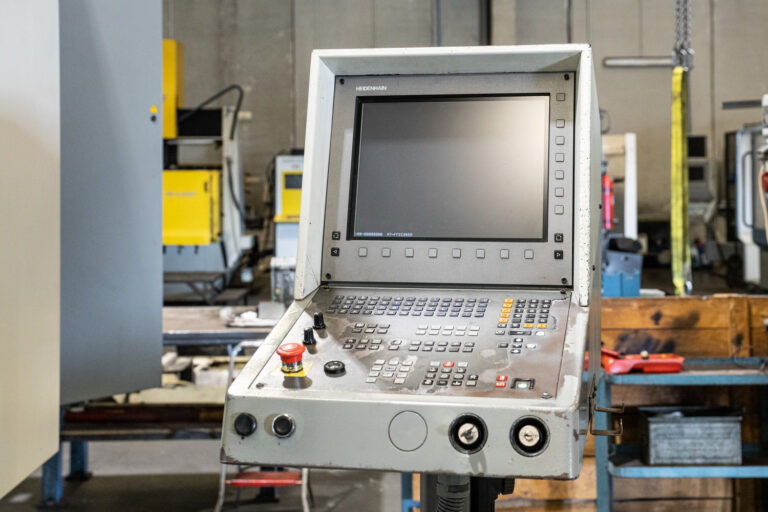

CNC controller: Heidenhain TNC 430
Axes
X-axis travel mm: 1800
Y-axis travel mm: 2000
Z-axis travel mm: 1100
C-axis degrees: 360º (0,001)
B-axis degrees: -7/+187º
Feed rates m/min: 60/40/40
Rapid traverse m/min: 60/40/40

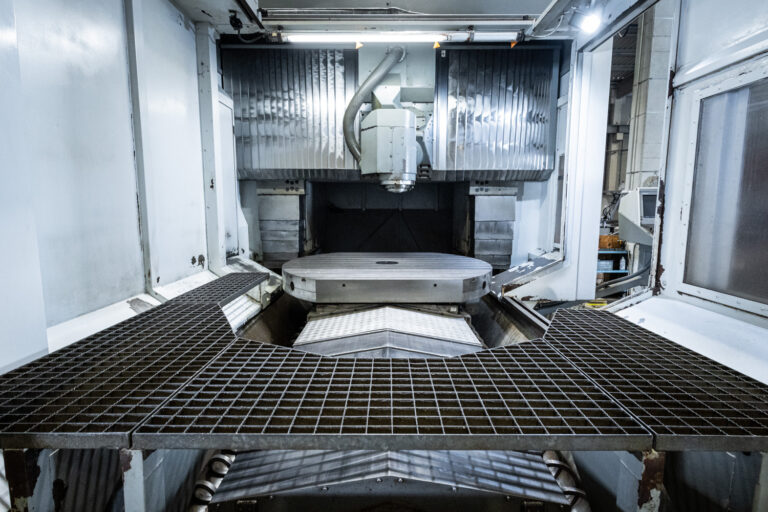

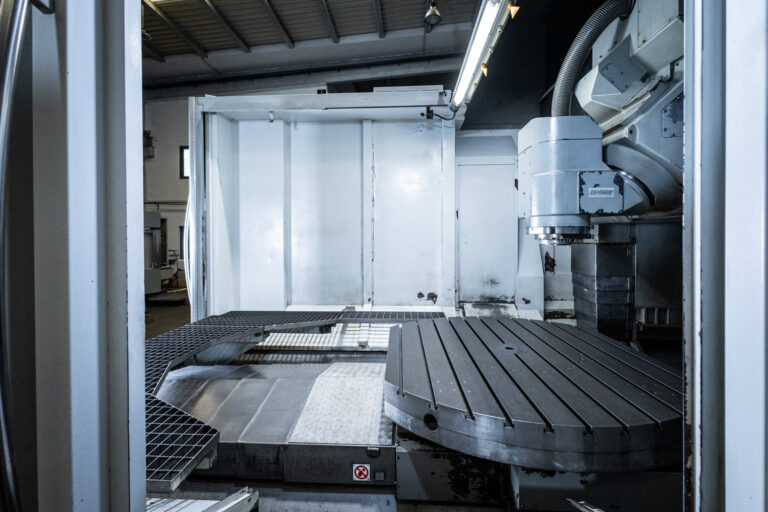

Milling/turning table nc:
Table dimensions mm: Ø1700×1400
Max. workpiece weight kg: 5000
Table rotation speed rpm: 200

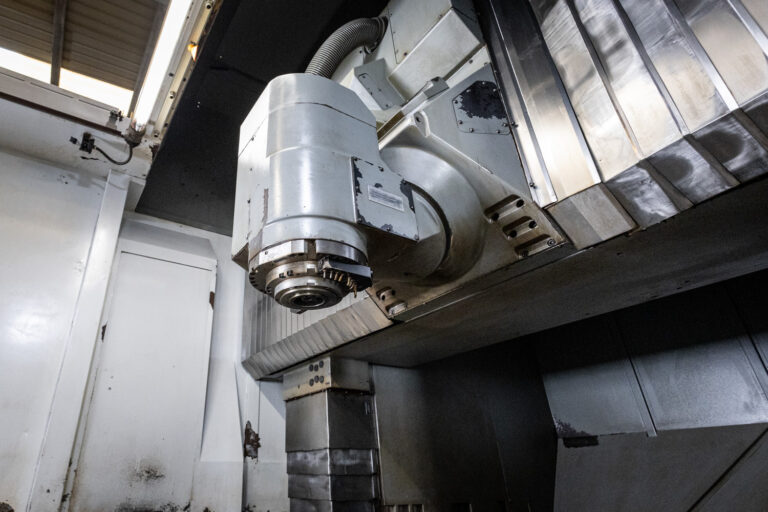

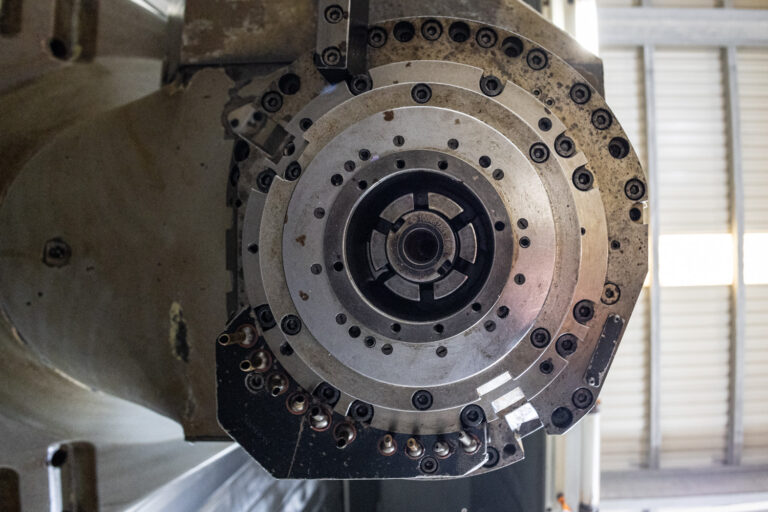

Spindle
Spindle speed rpm: 10000
Spindle drive power kW: 44/32(40%ED/cont)
Spindle torque Nm: 288/187 (40/100%ED)
Cooling
Cooling through the Spindle Center bar: 40
Tank capacity: 900
Tool system

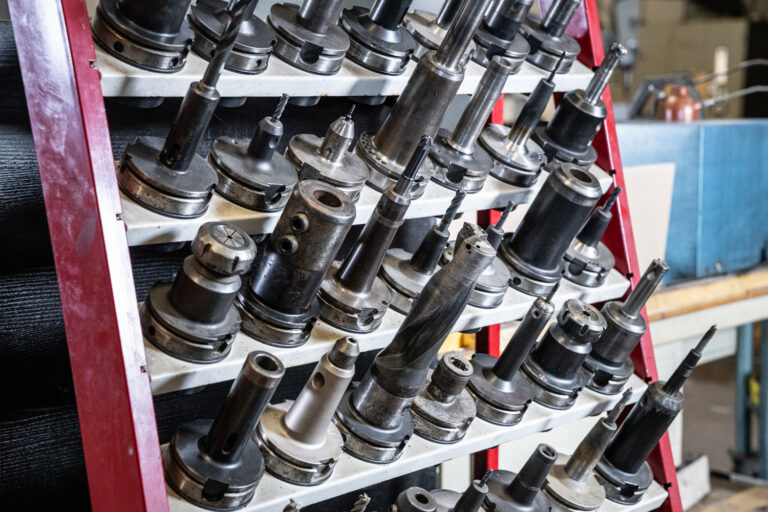

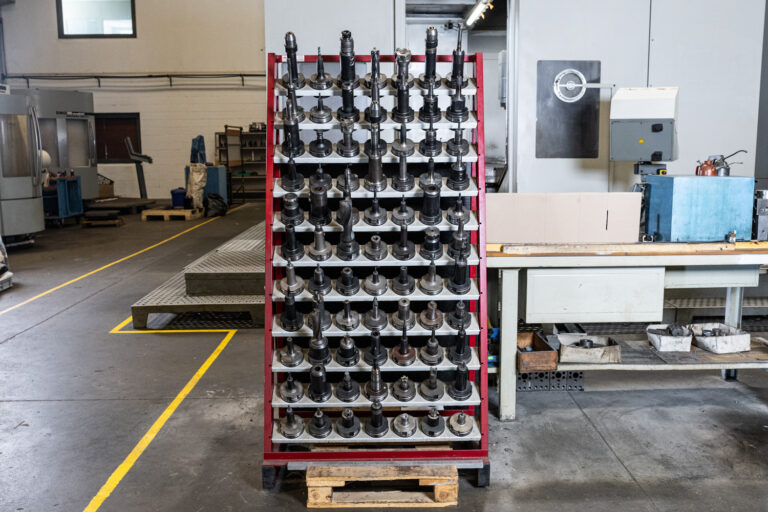

Tool holder: HSK-A 100

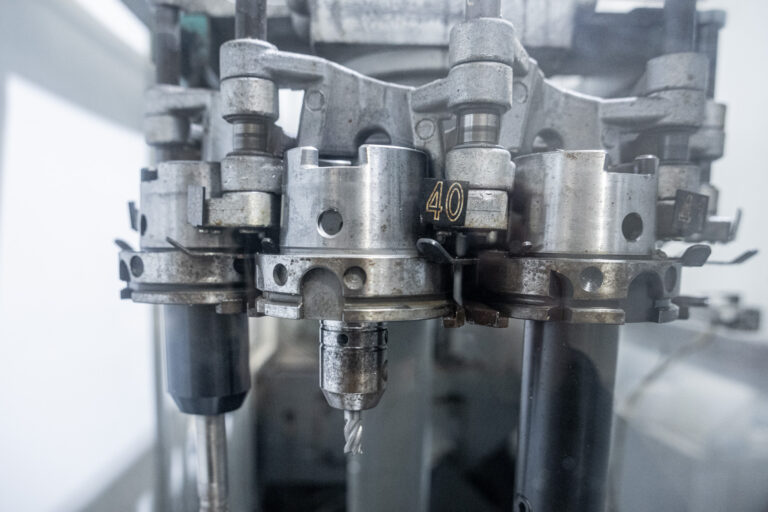

Tool magazine slots: 60
Tool changer: Double gripper
Chip-to-chip time s: 13.5
Equipment
Electronic Handwheel
Chip conveyor
Infrared probe
Internal cooling lubricant supply
Rotating inspection windows
Rinsing gun
Operating mode 4
Tool breakage probe

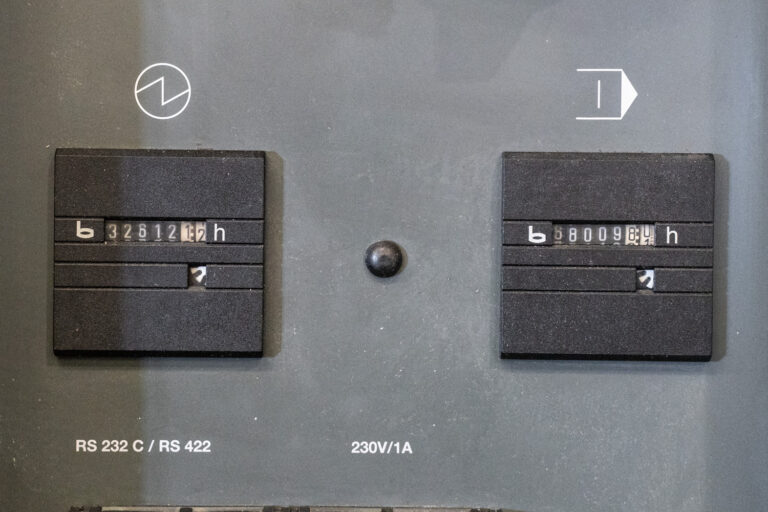

Machine running times Under power: 10356
Spindle Working: 6223

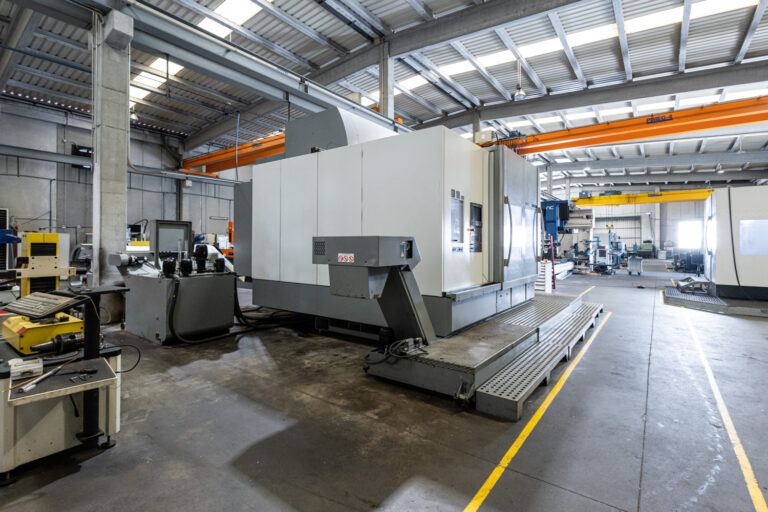

Basic machine dimensions / weight
Length mm: 7900
Width mm: 8800
Height mm: 4200
董雁冰
CEO
Cillian Weber
CEO

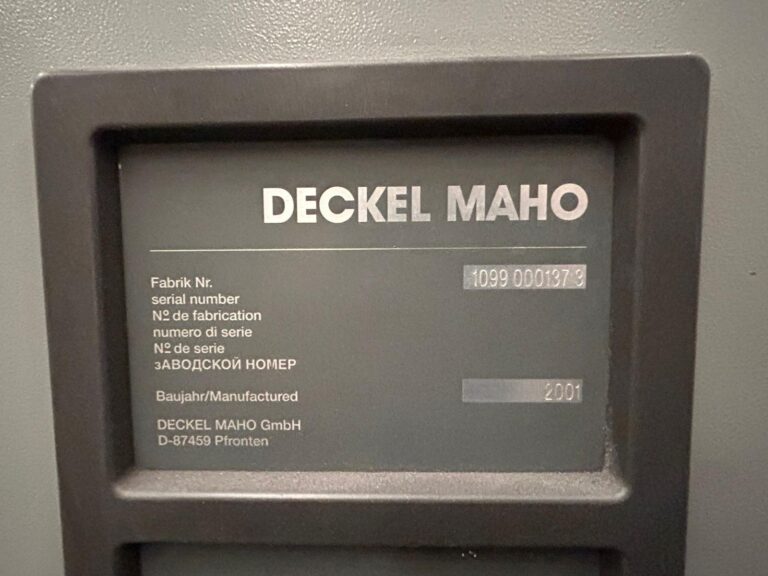

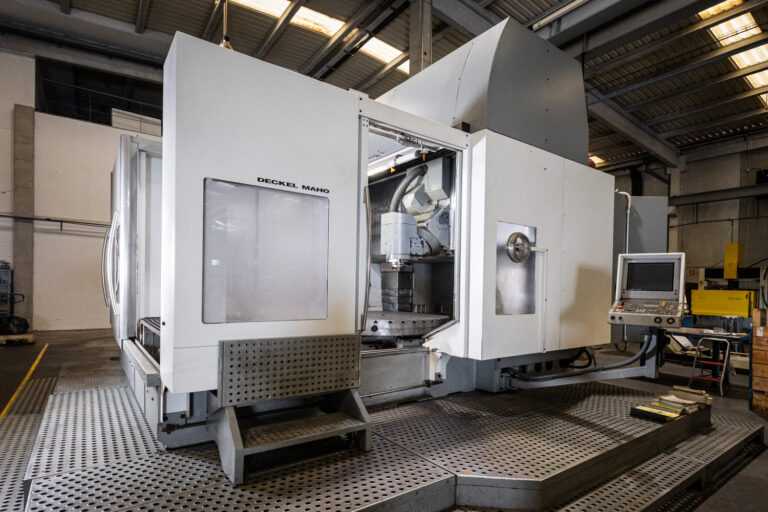

Deckel Maho
